M.2 (NGFF) card > M2-2213
|
|
..........................................................................................................................................
|
M.2(NGFF) supports IEEE1394A & 1394B
|
|
 |
-2230 M.2 Card dimension
-M.2 Key A-E PCIe interface
-Fully Compliant With PCI Express Base Specification,
Revision 1.1
-Supports Provisions of IEEE Std P1394b- 2002 and
IEEE Std 1394-1995 for IEEE Std 1394a-2000
-Fully Compliant With 1394 Open Host States Controller
Interface (OHCI) Specification, Revision 1.1 and Revision
1.2 Draft
|
|
|
Specifications
|
|
Host Interface
|
M.2
|
|
Controller
|
Texas Instruments XIO2213B
|
|
M.2 key type
|
A-E PCIe Interface
|
|
Dimension
|
22mm
x 30mm x 7mm (L x W
x H) |
|
Voltage
|
3.3V +/-5%
|
|
Temperature
|
0~70°C
|
|
Storage Temperature
|
-40~+85°C
|
|
Compliance
|
IEEE 1394a (Firewire
400) x1
IEEE 1394b (Firewire
800) x2 |
|
Transfer Rate
|
100M bits/s, 200M bits/s, 400M bits/s,
and 800M bits/s (IEEE 1394b)
|
|
User Manual
|
Manual ,
Datasheet |
|
|
|
|
Ordering
Code
|
|
M2-2213
|
M.2 (NGFF) card supports IEEE1394 Module.
|
|
|
|
1394 Adapter x1 |
|
1394 Cable
x1 |

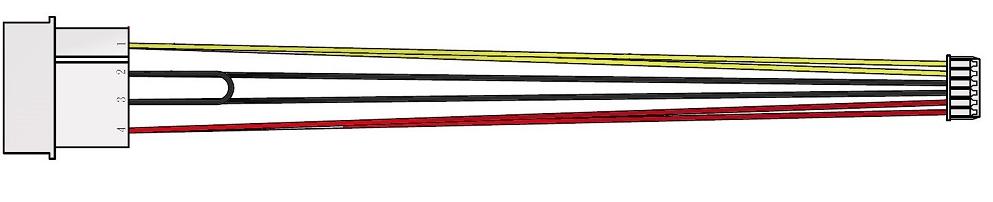

Power Cable
x1 |
|
|
|
|
|
