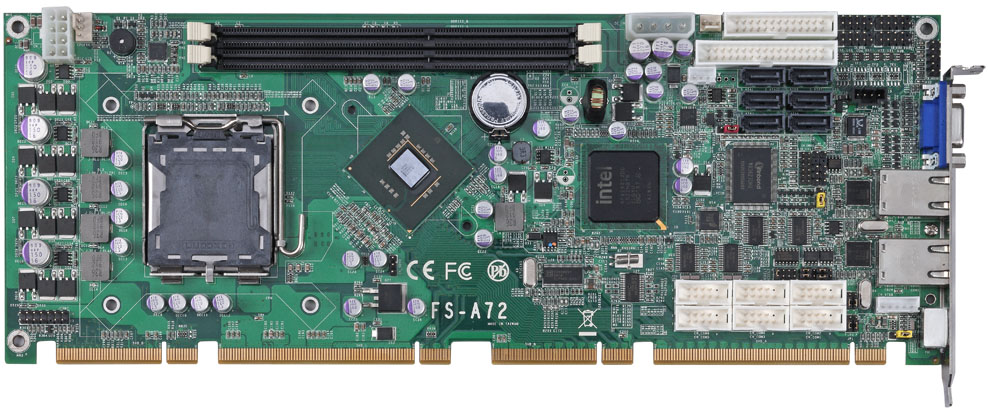

FS-A72
 PICMG 1.3 Intel® Core™ 2 Duo Desktop CPU Card
PICMG 1.3 SBC with Intel Q45 based on Intel Core 2 Quad &
Core 2 Duo / Pentium D / Pentium 4 processor,
4GB DDR3, 2 x Giga LAN, SATA, HD Audio, 8 x USB2.0,
VGA, Printer port, Digital I/O, 6 x COM


view larger image





-

Overview
-

Feature
-

Specification
-

Product Image
-

Ordering Guide
-

Datasheet (PDF format)
-

Technical Document
  Overview

COMMELL's  FS-A72 single board computer has a built-in Intel Graphics Accelerator 4500 to deliver an excellent blend of graphics performance and features, Delivers integrated dual-display support and support for Microsoft DirectX 10 and OpenGL 2.0 enabling support for the highest levels of Windows Vista experience. The Graphic Memory Controller Hub incorporates an updated backbone architecture that optimizes available bandwidth with the 1333 MHz system bus.

The SBC also supports Intel Matrix Storage Technology (MST), provides quicker access to applications and data files with RAID 0 and 10, and greater data protection against a hard disk drive failure with RAID 1, 5, and 10.

The FS-A72 is specifically designed to support enriched IO interfaces that comes with floppy, Printer port, PS/2 Keyboard and Mouse, GPIO,  5 x RS232C and 1 x RS232/422/485, Networking is provided by Intel 2 x 82574L PCI-Express Giga LAN, 8 x USB2.0 ports, It offers support for High Definition Audio enables increased bandwidth for high quality audio and support for Dolby Technology.



BackToTop

  Key Feature

  • CPU: Intel® Core™ 2 Quad, Core™ 2 Duo, Celeron® in the LGA775 socket @ 800/1066/1333MHz.

  • Memory: 2 x DDR3 800/1066MHz SDRAM up to 4GB.

  • Chipset: Intel® Q45 Express and ICH10DO.

  • VGA Interface: Intel® integrated extreme GMA 4500 technology.

  • Serial ATA: 6 x Serial ATA interface with 300 MB/s transfer rate.

  • LAN Interface: 2 x Intel® 82574L Gigabit Ethernet.

  • Audio: Realtek ALC888 HD Audio.

  • I/O Ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 8 x USB2.0 ports, 1 x DB15 VGA port, 1 x  PS/2 keyboard and mouse ports, FDD, Printer port.

  • GPIO interface: Onboard 8-bit Digital I/O interface.

  • WatchDog Timer: 256-level generates system reset programmable watchdog timer.



BackToTop

  Specification


Form Factor

PICMG 1.3 Full-size CPU card

CPU

Intel® Core™ 2 Quad, Core™ 2 Duo, Celeron® processor

Package type : LGA775

FSB : 800/1066/1333MHz

Memory

2 x DDR3 800/1066MHz SDRAM up to 4GB

Chipset

Intel® Q45 Express & ICH10DO

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset internal timer for 1sec/min ~ 255 sec/min

Power Management

ACPI 1.0 compliant, supports power saving mode w/ ATX PSU

VGA Interface

Intel® integrated extreme GMA 4500 technology

Video Memory

Up to 1024 MB shared with system memory

Serial ATA Interface

6 x Serial ATA II Interface with 300 MB/s transfer rate

Support RAID 0, 1, 5, 10 and Intel® Matrix Storage Technology

Audio Interface

Realtek ALC888 HD Audio

LAN Interface

2 x Intel® 82574L Gigabit Ethernet

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Expansion Interface

Support one x16 PCIe

Support one x4 PCIe or four x1 PCIe (Optional)

Support four PCI bus master, four USB2.0 interface

External I/O Port

DB15 VGA port, RJ45 LAN port, PS/2 Keyboard/Mouse port

Internal I/O Port

5 x RS232, 1 x RS232/422/485, 1 x LPT, 1 x FDD, 1 x GPIO

1 x IrDA, 8 x USB2.0, 1 x SMBus, 1 x Front Audio, 1 x CDIN

Power Requirement

+5V, +12V & 5VSB

Board Dimension

338mm x 126 mm (L x W)

Operation Temperature

0 ~ 60ºC (32 ~ 140ºF)



Download Datasheet @ PDF format

BackToTop

Ordering Guide

FS-A72G

PICMG 1.3 SBC supports Intel® Core™ 2 Quad with onboard VGA,

SATA, USB 2.0, HD Audio, RS232/422/485, 1 x Giga LAN

Support one x16 PCIe, four x1 PCIe

FS-A72G2

PICMG 1.3 SBC supports Intel® Core™ 2 Quad with onboard VGA,

SATA, USB 2.0, HD Audio, RS232/422/485, 2 x Giga LAN

Support one x16 PCIe, four x1 PCIe

FS-A72FG

PICMG 1.3 SBC supports Intel® Core™ 2 Quad with onboard VGA,

SATA, USB 2.0, HD Audio, RS232/422/485, 1 x Giga LAN

Support one x16 PCIe, one x4 PCIe

FS-A72FG2

PICMG 1.3 SBC supports Intel® Core™ 2 Quad with onboard VGA,

SATA, USB 2.0, HD Audio, RS232/422/485, 2 x Giga LAN

Support one x16 PCIe, one x4 PCIe

OHS-1U775S

Low Profile 1U Multi-Core CPU Cooler (LGA775)

DBPE-1308A

  8 PCI + 1 PCIe x16 + 3 PCIe x1 Active Backplane
DPE-6S2-R40  3 PCI + 1 PCIe x16 + 1 PCIe x4 Passive Backplane
DPE-10S-R40  4 PCI + 1 PCIe x16 + 4 PCIe x1 Passive Backplane
