HS-862

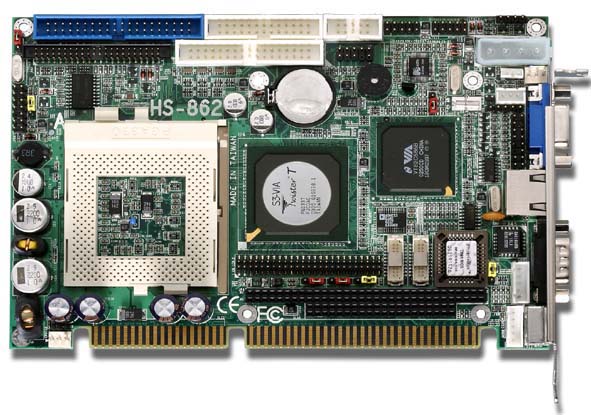

Half-size ISA-bus Socket 370 Pentium-III / Celeron CPU Card

with Flat Panel SVGA/ CRT UXGA, 18-bit LVDS, 10/100Mbps LAN Interfaces

-

Overview

-

Feature

-

Specification

-

Product Image

-

Ordering Guide

-

Datasheet (PDF format)

-

Technical Document

  Overview

COMMELL's HS-862 SBC (Single Board Computer) is an all-in-one industrial half-size ISA-bus CPU card based on Intel socket 370 architecture, supports Intel Pentium-III, Celeron and VIA C3 CPUs up to 1.4 GHz at 133 MHz of FSB.Support Intel Tualatin/Coppermine FC-PGA2/FS-PGA CPU and VIA C3 Samuel I/II. With up to 512MBytes 144 DIMM SDRAM, Dual UltraATA/100 IDE, 128-bit 3D Engine Graphic chipset, integrated flat panel SVGA, 18-bit LVDS, 10/100Mbps LAN and SSD interfaces, the HS-862 provides the powerful system performance solution. With these features, HS-862 makes it possible for you in :

• Industrial Applied Computing Server and Workstation Platform

• CTI (Computer Telecom Integration), DVR (Digital Video Recorder), VOD (Video-On-Demand), broadcast, streaming server and cluster

• Industrial Panel PC, Portable Workstation, Panel-mount / Wall-mount Workstation

• POS/POI, Kiosk, ATM, Web Payphone, transaction station and terminal

• Industrial applied instruments based on network and LVDS panel-link / TTL LCD display

BackToTop

  Feature

• Powerful computing capacity with Intel Socket 370 Pentium-III / Celeron CPU up to 1.4GHz at 133 MHz of FSB. Support Intel Tualatin/Coppermine FC-PGA2/FS-PGA CPU and VIA C3 Samuel I/II.

• Up to 512MBytes 144 Ping SO-DIMM SDRAM

• Advanced UltraATA/100 IDE interface to enhance the full system performance

• Integrated 128-bit 3D Engine Graphic chipset

• Integrated flat panel supported by LVDS panel link or TTL

• Integrated 10/100 Mbps Fast Ethernet interface

• Integrated AC'97 3D Audio interface

• Jumper selectable RS-232C serial port

• Four USB ports for additional USB devices or adapters

• CompactFlash support

• Popular OS supported for industrial mainstream applications

• Industrial standard ISA form factor

BackToTop

  Specification

• Form Factor: half-size ISA-bus CPU card

• Socket 370 supports FC-PGA Intel^® Pentium^®-III, FC-PGA/PPGA Celeron^TM, VIA C3 CPUs up to 1.4 GHz @ FSB 66/100/133 MHz. Support Intel Tualatin/Coppermine FC-PGA2/FS-PGA CPU and VIA C3 Samuel I/II.

• Chipset: VIA/S3 Twister-T PN133T chipset with VIA 8606T and 686B

• DRAM: 512MBytes 144 Ping SO-DIMM SDRAM

• PCI Enhanced IDE: Dual UltraATA/100 bus master IDE channel up to 4 ATAPI device

• I/O Ports: two RS232  serial port, one SPP/ECP/EPP parallel port, four 1.1USB, FDD, IrDA, PS/2 keyboard and mouse ports

• VGA Interface: VIA/S3 Twister VT8606T chipset built-in S3 Savage4 SVGA core with 128-bit 3D engine BIOS selectable 8/16/32 MBytes video memory shared with system memory VGA,SVGA,XGA,SXGA,UXGA mode up to 1280 X 1024 of resolution

• LCD Interface: Support 18-bit TTL/LVDS TFT/DSTN LCD interface with 256 gray shade integrated 2-channel 110 MhHz LVDS interface up to 1280 X 1024 of resolution

• LAN Interface: 10/100Mbps Fast Ethernet interface with RJ45 on bracket

• SSD: Onboard CompactFlash socket support CompactFlash Card(CFC) Flash memory capacity up to 1 Gbytes, driver free and bootable Jumper selectable master/slave mode on primary IDE port

Download datasheet @ PDF format
