LE-365


3.5" Miniboard with VIA V4 Eden 1.0 GHz CPU & VIA CX700M Chipset ,
1.0 GB DDRII , Giga LAN , 18/24-bit LVDS , USB 2.0 , COM ,  HD audio
2 x Mini-PCI and 1 x CompactFlash socket , DC 8 ~ 24 input
view larger image




-
Overview


-
Feature


-
Specification


-
Product Image


-
Ordering Guide


-
Datasheet (PDF Format)


-
Technical Document

  Overview

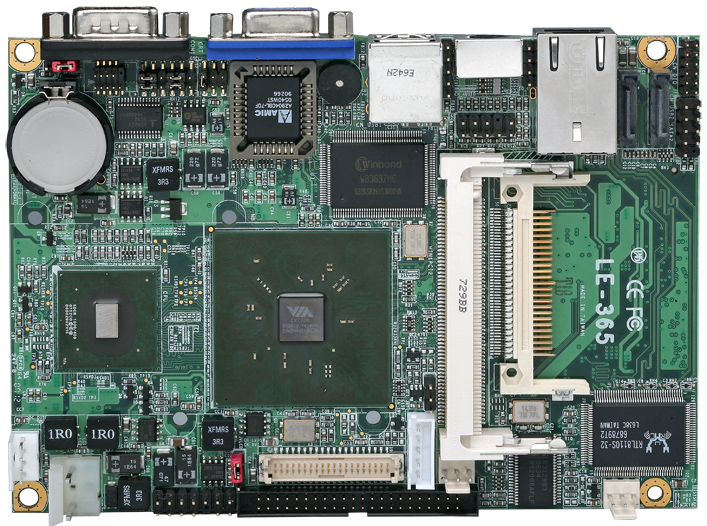

COMMELL's LE-365 based on VIA Eden CPU ,With VIA CX700M Chipset. LE-365 combined the highly efficient VIA V4 Eden 1.0 GHz processor and the CX700M is based on a highly sophisticated power efficient architecture that enables such rich integration into a compact package with a maximum power envelope of just 3.5 watts .The CX700M features the VIA UniChrome™ Pro II Integrated Graphics Processor (IGP) ensuring optimal performance for all multimedia, entertainment, and productivity applications.

the LE-365 leverages the advanced hardware MPEG-2, MPEG-4, and WMV9 decoding Acceleration features for the most popular digital video and audio formats. 2 x Mini-PCI slots uses Mini-PCI add-on card for easily using any wireless card or other add-on cards. Additionally, LE-365 is also equipped with  CompactFalsh Interface for easily using any memory card. The low power consumption and high integration make LE-365 be the ideal solution for industrial embedded applications .

BackToTop

  Key Feature
  • Compact embedded miniboard with 3.5" drive size, 146 x 101 mm of dimension.

  • Embedded VIA V4 Eden 1.0 GHz CPU . FSB 400 MHz.

  • VIA CX700M integrates S3 Graphics UniChrome Pro II graphic. MPEG2 Decoder

  • One 200-pin DDRII 400/533 up to 1.0 GB.

  • Optional 18/24-bit LVDS or DVI interface.

  • Integrated HD audio, One Giga Ethernet interface.

  • GPIO Interface and  IDE1 support DiskOnModule with +5V power supply.

  • 2 x Mini-PCI slot. 4 x USB 2.0. 2 x COM.

  • Onboard CompactFlash socket supports CFC (Compact Flash Card)

  • DC 8 ~ 24V Input.

BackToTop

  Specification
  • Form Factor: 3.5" Embedded Miniboard

  • CPU: Embedded VIA V4 Eden 1.0 GHz CPU

  • Memory: Onboard 1 x 200-pin SO-DIMM DDRII 400/533 up to 1.0 GB

  • Chipset : VIA CX700M

  • Real Time Clock : Chipset Integrated RTC with onboard lithium battery

  • Watchdog Timer : Generates a system reset with internal timer for 1 ~ 255 min/s

  • Power Management : ACPI 1.0 compliant, supports power saving

  • PCI Enhanced IDE: One ATA133 IDE channel supports up to 2 ATAPI devices. Onboard 1 x 44-pin IDE connectors

  • VGA Interface: VIA CX700M integrates S3 Graphics UniChrome Pro II graphic core.       64 MB of video memory shared with system.

  • LVDS Interface: Optional 18/24-bit LVDS interface.

  • DVI Interface: Optional DVI interface.

  • LAN Interface: 1 x Realtek RT8110S-32 Giga Ethernet controller.

  • Serial ATA interface: 2 x SATA interface up to 300 MB/s transfer rate.

  • Audio Interface: VIA VT1708A HD Audio

  • Solid State Disk: IDE1 supports DiskOnModule with + 5V power supply.1 x CF socket.

  • Internal I/O Ports: 1x IrDA port, 2 x USB ports.1 x Serial Port, 1 x LVDS & CDIN (optional), 1 x  DVI (optional), 1 x 44-pin IDE, 1 x 5V/12V DCout

  • External I/O Ports: 1 x RJ45 LAN ports, 1x DB15 VGA port and 1x PS/2 port, 1x RS232 port, 2 x USB2.0, 1 x DC Jack

  • Extended Interface: 2 x Mini-PCI slot.

  • Power Requirement : Full range DC 8 ~ 24V input

  • Board Dimension : 146 mm x 101 mm (L xW)

Download datasheet @ PDF format

BackToTop

  Ordering Guide
LE-365D
3.5" Embedded VIA V4 Eden 1.0 GHz CPU with VIA CX700M Chipset, VGA
Audio, LAN, COM, SATA, Mini-PCI and CFC socket, DVI interface .
LE-365E5D

Same as LE-365D but change CPU to Eden ULV500

LE-365X
3.5" Embedded VIA V4 Eden 1.0 GHz CPU with VIA CX700M Chipset, VGA
Audio, LAN, COM, SATA, Mini-PCI and CFC socket, LVDS interface .
LE-365E5X

Same as LE-365X but change CPU to Eden ULV500

CMB-365

Fanless barebone with LE-365D & SPD-080-12,without DVI interface

CMB-365E5

Same as above but change CPU to Eden ULV500

SPD-080-12

12V/80W AC-DC adapter
