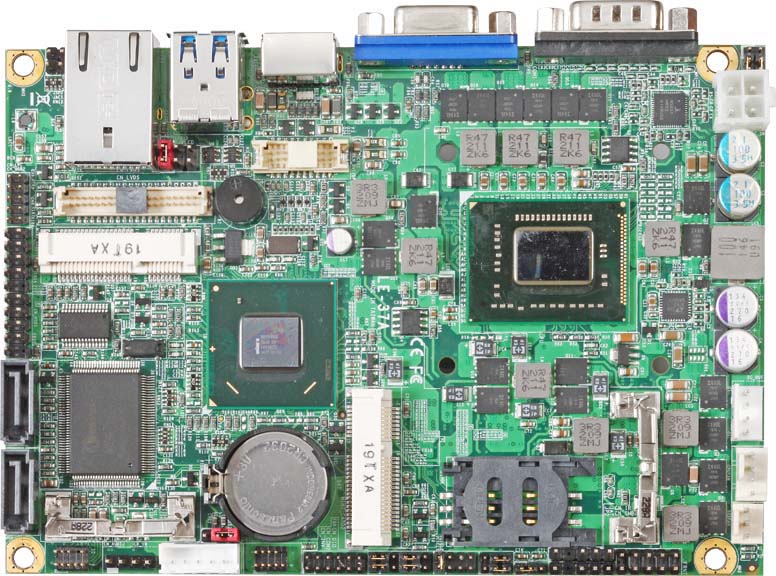

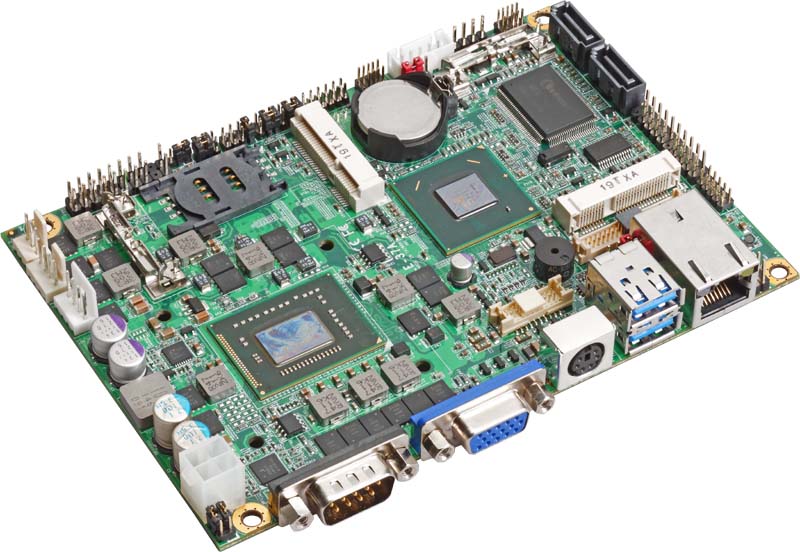

3.5" Miniboard with onboard Intel Celeron Processor 807UE/827E/847E
3.5" Miniboard based on Intel Celeron Processor 807UE/827E/847E , Intel® HM65
Express Chipset with DDR3 SDRAM, VGA, 24-bit Dual channel LVDS Interface, DVI,
Giga LAN, 2 x COM , HD Audio, 6 x USB, SATAIII , LPC, Mini-PCIE, GPIO, DC 9V~24V
|
Overview
|
|
LE-37A consists of the Intel® Celeron® 807UE or
827E or 847E, combined with the Intel HM65 express chipset, Integrated
extreme HD graphics Technology providing one
DDR3-1066/1333 SO-DIMM SDRAM
up to 4GB(807UE)or 8GB(827E/847E)
and an array of video interface including
VGA, DVI and 24-bit Dual channel LVDS.
The LE-37A comes with PS/2 Keyboard and Mouse, 1 x
RS232/422/485 and 1 x RS232, 1 x Intel Giga LAN, LPC, 2 x SATAIII, 6 x USB2.0 ports and HD Audio are also
integrated. Two PCIE mini card socket(or one PCIE mini
card and one mSATA) allows for easily using any wireless
card or other add-on cards. Additionally, The operating
voltage of LE-37A is from 9V to 24V DC that is ideal for
vehicle computer applications.
|
|
BackToTop |
Key Feature
|
-
CPU: Intel
Celeron Processor 807UE or 827E or 847E
-
Memory: 1
x 204-pin DDR3 1066/1333 SO-DIMM SDRAM up to 4.0GB(LE-37ANB) or 8GB (LE-37AC6 / LE-37ABU)
-
Chipset:
Intel® HM65 Express Chipset
-
Integrated
Graphics:
Intel® Integrated
extreme HD graphics Technology
-
LVDS
interface: 24-bit Dual channel LVDS interface
-
DVI
interface: onboard 20-pin DVI interface
-
LAN
Interface: 1
x Intel® 82579LM Giga LAN
-
Serial ATA:
Support 2 x SATAIII up to 600MB/s
-
Audio: Realtek ALC888 High Definition Audio.
-
I/O
ports: 1 x RS232 and 1 x RS232/422/485 Serial Ports,
4 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and
mouse ports, 1 x LPC, 1 x SMBUS, 1 x IrDA
-
Extended
interface: 2 x PCIE mini card(
Optional support mSATA(SATAII) for Mini_Card2)
-
GPIO
interface: Onboard programmable 8-bit Digital
I/O interface.
-
Power requirement : DC 9V ~ 24V
(±5%)DC
input
|
|
BackToTop |
Specification
|
|
Form Factor |
3.5"
Single Board Computer |
|
Processor |
Intel
Celeron Processor 807UE or 827E or 847E |
|
Memory |
1
x 204-pin DDR3 1066/1333 SO-DIMM SDRAM up to 4.0GB(LE-37ANB) or 8GB (LE-37AC6 / LE-37ABU)
|
|
Chipset |
Intel®
HM65 Express Chipset |
|
Real
Time Clock
|
Chipset
integrated RTC with onboard lithium battery
|
|
Watchdog
Timer |
Generates
a system reset with internal timer for 1min/s ~ 255min/s
|
|
Serial ATA
Interface |
2
x Serial ATA III interface up to 600MB/s
|
|
Integrated
Graphics |
Intel® Integrated
extreme HD graphics Technology |
|
LVDS
Interface |
24-bit
Dual channel LVDS interface |
|
DVI
Interface |
onboard
20-pin DVI interface
|
|
Audio
Interface |
Realtek ALC888 HD Audio
|
|
LAN
Interface |
1
x Intel®
82579LM Gigabit Ethernet Controller |
|
GPIO
Interface |
Onboard
programmable
8-bit digital I/O interface
|
|
Extended
Interface |
2
x Mini-PCIe
sockets (
Optional support
mSATA(SATAII)
for
Mini_Card2)
|
|
Internal I/O
Port
|
1
x RS232/422/485 , 1 x GPIO, 1 x SMBus,1 x HD Audio,
1 x IrDA, 4 x USB2.0, 1 x
LPC, 1 x DVI, 1 x LVDS, 1 x CN_INV,
2
x Serial ATAIII
|
|
External I/O
Port |
1 x PS/2 keyboard/mouse, 1 x RJ45 LAN, 1
x VGA, 2 x USB2.0,
1 x
RS232
|
|
Power Requirement |
DC 9V ~ 24V (±5%)
input |
|
Board Dimension
|
146mm x 101 mm (L x
W)
|
|
Temperature |
Operating
within 0 ~
60°C
Storage
within -20 ~ 85°C
|
|
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Guide
|
|
LE-37ANB
|
Support Intel® Celeron® Processor 807UE with Onboard VGA, LVDS, DVI, Giga LAN, USB2.0, HD Audio,
SATAIII, SMBUS, LPC, GPIO, PCIE mini card
|
|
LE-37ANBS
|
Support Intel® Celeron® Processor 807UE with Onboard VGA, LVDS, DVI, Giga LAN, USB2.0, HD Audio,
SATAIII, SMBUS, LPC, GPIO, PCIE mini card, mSATA
|
|
LE-37AC6
|
Support Intel® Celeron® Processor 827E
with Onboard VGA, LVDS, DVI, Giga LAN, USB2.0, HD Audio,
SATAIII, SMBUS, LPC, GPIO, PCIE mini card
|
|
LE-37AC6S
|
Support Intel® Celeron® Processor 827E with Onboard VGA, LVDS, DVI, Giga LAN, USB2.0, HD Audio,
SATAIII, SMBUS, LPC, GPIO, PCIE mini card, mSATA
|
|
LE-37ABU
|
Support Intel® Celeron® Processor 847E with Onboard VGA, LVDS, DVI, Giga LAN, USB2.0, HD Audio,
SATAIII, SMBUS, LPC, GPIO, PCIE mini card
|
|
LE-37ABUS
|
Support Intel® Celeron® Processor 847E with Onboard VGA, LVDS, DVI, Giga LAN, USB2.0, HD Audio,
SATAIII, SMBUS, LPC, GPIO, PCIE mini card, mSATA
|
