LE-37R

3.5 inch Miniboard with 12^th & 13^th Intel® Core^TM P/U Processors

Support 12^th & 13^thGen Intel® Core^TM P/U Processor.

DDR5 SO-DIMM up to 4800 MHz 64 GB, integrated HDMI, DisplayPort, LVDS, 1 x Type-C (DP Alt.

Mode), 2 x HDMI / DVI, 1 x Giga PHY LAN, 2 x 2.5Giga LAN, 3 x USB 3.2 Gen2, 2 x USB 2.0, 2 x

RS232, 2 x RS232/422/485,  2 x SATA3 with RAID, GPIO, SMBus, 1 x Mini-PCIe with SIM slot

(support mSATA), HD Audio, 1 x M.2 (Key E 2230), 2 x M.2 (Key M 2280) PCIe Gen4 for NVMe


view larger image
	-	Overview
	-	Feature
	-	Specification

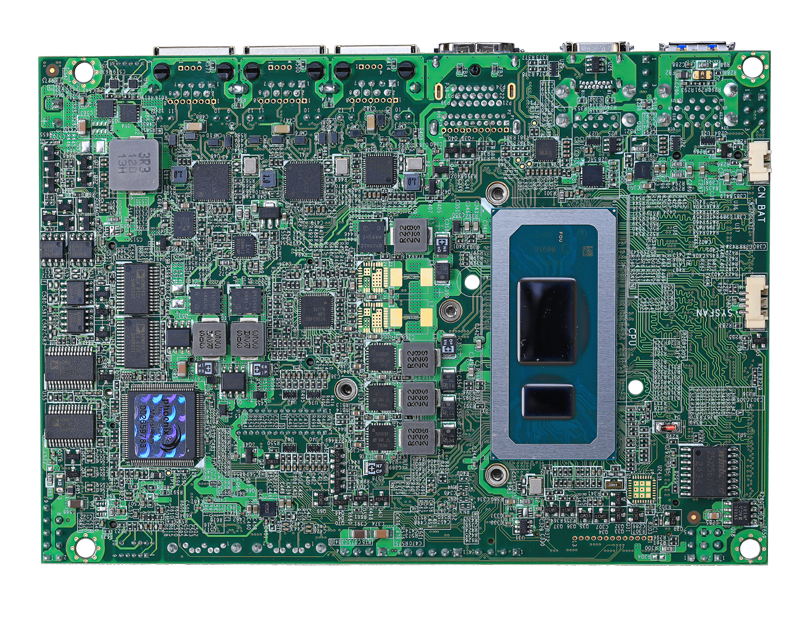

	-	Product Image BOTTOM I/O
	-	Ordering Guide
	-	Datasheet (PDF format)
	-	Technical Document

  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers,
unveiled LE-37R 3.5 inch Miniboard embedded system board based on 12^{th &}13^thIntel® Gen Core^TM P/U

Processors.


The LE-37R 3.5 inch Miniboard platform is designed for 12^{th &}13^thIntel® Gen Core^TM P/U processors in

the FCBGA1744 package support DDR5 memory (Two DDR5 SO-DIMM up to 4800 MHz 64GB).

The platform is based on Intel® 12^th & 13^th Gen integrated Xe or UHD Graphics, this GPU offers 32

execution units (EUs) clocked at up to 1350Mhz(depending on the CPU model). Displays can be connected

via one LVDS, one HDMI, one DP, one Type-C (DP Alt Mode) port and two HDMI / DVI up to four displays

can be controlled simultaneously. LE-37R offers lots of features including high-speed data transfer interfaces

such as 3 x USB3.2 Gen2 and 2 x SATA3, equipped with triple Gigabit Ethernet, and comes with 2 x RS232

and 2 x RS232/422/485, 2 x USB2.0, Intel® High Definition Audio, 1 x M.2 Key E 2230, 2 x M.2 Key M 2280

support PCIe Gen4 for NVMe, 1 x MiniPCIe socket with SIM slot (support mSATA).

BackToTop

  Key Feature

CPU: 12^th & 13^th Gen Intel® Core^TM P/U Processors FCBGA1744 package.
Memory: 2 x DDR5 SO-DIMM up to 4800 MHz 64 GB.
Integrated Graphics: Intel® Iris® Xe or UHD Graphics
LVDS interface: Onboard LVDS connector.
DisplayPort interface: Onboard DisplayPort connector.
HDMI interface: Onboard HDMI connector.
LAN Interface: 3 x RJ45 LAN.
Serial ATA: Support 2 x SATA3(Note1).
Audio: High Definition Audio with 3Watt amplifier for 4 ohm speaker.
Internal I/O: 2 x SATA3, 2 x RS232, 2 x RS232/422/485, 2 x USB2.0, 1 x LVDS, 1 x LCD inverter conector, 1 x GPIO, 1 x Audio, 1 x Audio Amplifier, 1 x SMBus, 2 x HDMI / DVI.
Rear I/O: 1 x DisplayPort(Note2), 1 x HDMI, 1 x Type-C (DP Alt. Mode), 3 x USB3.2 Gen2, 3 x LAN.
Expansion: 1 x MiniPCIe with SIM slot (support mSATA), 2 x M.2 Key M 2280,1 x M.2 Key E 2230.
GPIO interface: 8-bit Digital I/O interface.
Power requirement: DC input 9~35V.

BackToTop

  Specification

Form Factor	3.5" Single Board Computer
Processor	12^th & 13^th Gen Intel® Core^TM P/U Processors Package Type: FCBGA1744
Memory	2 x 262-pin DDR5 SO-DIMM up to 4800 MHz 64GB (Support Non-ECC, unbuffered memory)
Integrated Graphics	Intel® 12^th & 13^th Gen integrated UHD or Iris® Xe Graphics
Real Time Clock	Chipset integrated RTC with onboard lithium battery
Watchdog Timer	Generates a system reset with internal timer for 1min/s ~ 255min/s
Serial ATA Interface	Intel® built-in 2 x Serial ATA3 interface up to 600MB/s Support RAID 0, 1 and Intel Rapid Storage Technology.
LVDS Interface	Onboard 18/24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply
DisplayPort Interface	Onboard DisplayPort connector
HDMI Interface	Onboard HDMI connector
Audio Interface	Realtek ALC888S HD Audio with 3Watt amplifier for 4 ohm speaker
LAN Interface	1 x Intel® I219-LM Gigabit LAN (Support Intel® AMT 16.0) 2 x Intel® I226-LM Gigabit LAN (Up to 2.5GbE)
GPIO Interface	Onboard programmable 8-bit digital I/O interface
Expansion	1 x MiniPCIe with SIM slot (support mSATA)(Note1) 2 x M.2 Key M 2280 support PCIe Gen4 for NVMe 1 x M.2 Key E 2230 for Wi-Fi and Bluetooth
Internal I/O Port	2 x SATA3, 2 x RS232/422/485, 2 x RS232, 2 x USB2.0, 1 x LVDS, 1 x LCD inverter connector, 1 x GPIO, 1 x SMBus, 1 x Audio (MIC-in & Line-out), 1 x Audio Amplifier, 2 x HDMI / DVI
Rear I/O Port	1 x DisplayPort(Note2), 1 x HDMI, 3 x USB3.2 Gen2, 3 x LAN, 1 x Type-C (DP Alt. Mode).
Power Requirement	DC input 9~35V
Board Dimension	146 mm x 101 mm (L x W)
Temperature	Operating within 0 ~ 60°C Storage within -20 ~ 80°C
Relative Humidity	10%~90%, non-condensing

Download Datasheet @ PDF format

BackToTop

Ordering Guide
LE-37RP7	With i7-1270PE + Cooler Fan, support HDMI, DP, LVDS, Type-C (DP Alt. Mode), 2.5G LAN
LE-37RU7	With i7-1265UE + Cooler Fan, support HDMI, DP, LVDS, Type-C (DP Alt. Mode), 2.5G LAN
LE-37RP7R	With i7-1370PE + Cooler Fan, support HDMI, DP, LVDS, Type-C (DP Alt. Mode), 2.5G LAN
LE-37RU7R	With i7-1365UE + Cooler Fan, support HDMI, DP, LVDS, Type-C (DP Alt. Mode), 2.5G LAN
Note1: SATA2 cannot use when Mini_card change to mSATA. Note2: Change pin header to support ADP-3355 or ADP-3460, please contact with our sales for OEM version. Note3: Intel® Iris® Xe Graphics has to install two memory cards.
