LE-564


5.25" Drive Size EBX Embedded Eden Miniboard
Embedded VIA Eden 533 MHz CPU, Onboard 128 MB SDRAM
4 X 10/100BASE-Tx Fast Ethernet
or 3 X 10/100BASE-Tx with 1 X 10/100/1000BASE-T Ethernet interface
Expended Universal Console Redirect(UCR) for remote operating SETUP Bios Feature
CRT SVGA, 2 COM, 1 LPT, 2 USB Ports

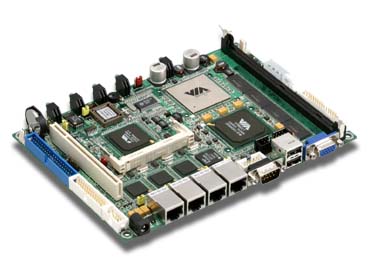

View Large image

-

Overview

-

Feature

-

Specification

- Product Image
- Ordering Guide
- Datasheet (PDF Format)
- Technical Document

  Overview

COMMELL's LE-564 is an industrial embedded single board computer based on VIA Eden platform, provides the advanced 533 MHz of computing capacity at low power, embedded, x86 processor architecture for the industrial embedded computers.

With VIA Eden platform and high integration, COMMELL's LE-564 offers the value embedded computing platform for high speed, compact, low profile, low power, fan free, mobile industrial applied computing applications based on industrial standard 5.25" drive size of form factor. The high integration and flexible expansibility of onboard CRT, 4 X  LAN make LE-564 be the ideal solution for industrial embedded applications with the features as below.

  • Advanced Embedded Computing Platform : advanced 686 level VIA Eden platform with 533 MHz of speed at 133 MHz of FSB, provides the advanced computing capacity for embedded systems.

  • Low Power / Fan Free Solution : based on the latest .13 micron of IC manufacturing procedure, VIA Eden platform is operating at the lowest voltage of only 1.05 to 1.2 volts. It makes LE-564 be the ideal solution with low power consumption for embedded, fan free and mobile applications.

  • Universal Console Redirect (UCR): Expended Universal Console Redirection (UCR) is an optional installable feature for monitoring POST messages and running Setup and an operateing system from a remote serial terminal.

BackToTop

  Key Feature
  • Powerful embedded computing capacity with VIA Eden 533 MHz CPU at 686 level standard x86 architecture

  • Onboard 128 MB SDRAM for embedded / anti-vibration / low profile embedded applications

  • Standard EBX format factor for upgrade of industrial embedded systems

  • Integrated advanced 4xAGP SVGA interface with 128-bit GUI, 3D/2D engine and max up to 8 MB shared with system memory

  • 2 LAN solutions with 4 X 10/100BASE-Tx Fast Ethernet or 3 X 10/100BASE-Tx with 1 X 10/100/1000BASE-T Ethernet interface

  • 2 serial and 1 parallel ports for POS / multiple I/O application.

  • Expansible Interface: One PCI expansive slot supports up to 2 PCI add-on cards via an additional riser card and one Mini-PCI socket optional use with PCI slot

  • Integrated CompactFlash type-I/II interface supports CFC (Compact Flash Card)  with flash memory capacity up to 1 GB.

  • Popular embedded OS (Microsoft WinCE and embedded Linux) supported for industrial mainstream applications

BackToTop


  Specification
Form Factor 5.25" Drive Size EBX Miniboard, 146 x 203 mm or 5.75" x 8.00"
CPU

Onboard embedded VIA Eden 533 MHz CPU @ 133 MHz FSB

DRAM

Onboard 128 MB PC133 SDRAM and one 168-pin DIMM slot supports additional 512 MB SDRAM. Total memory capacity up to 640 MB

Universal Console Redirectly (UCR) Option installable feature for monitoring POST messages and running Setup and Operating system from a Serial terminal
PCI Enhanced IDE

Dual Channels support 4 ATAPI devices up to UltraATA/100 with 100Mbps of data transfer rate. One 40-pin and one 44-pin IDE Port for 2.5" notebook-size HDD, slim CD-ROM/DVD/CD-RW and cable free DOM (DiskOnModule).

VGA Interface

VIA Apollo PLE133 chipset integrated  with VT8601 via UMA Architecture and max 8 MB of video memory shared with system memory

LAN Interface

4 x Realtek 8139C+ 10/100BASE-Tx Fast Ethernet

or 3 x Intel 82551QM 10/100BASE-Tx with 1 x Intel 82540EM  10/100/1000BASE-T Giga Ethernet interface

Multiple I/O Ports

2 COM, 1 Parallel, 2 USB ports.

Solid State Disk

Onboard CompactFlash Type-I/II socket support CFC (Compact Flash Card)  up to 1 GB of solid state flash disk

Expansible Interface

One PCI expansive slot supports up to 2 PCI add-on cards via an additional riser card and one Mini-PCI socket optional use with PCI slot

Environment Power

Requirement: +5V with onboard AT/4P power connector or

+5V AC/DC jack input connector

Board Dimension (L x W ) 146 x 203 mm or 8.00 x 5.75? Operation Temperature: 0 ~ 60oC (32 ~ 140oF)



  •

Download datasheet @ PDF format

BackToTop

  Ordering Guide

LE-564E5R-P

With VIA Eden 533 MHz CPU (Fan Free) , SVGA.

4 X Realtek 8139C+ LAN,

2 COM,1 parallel, 2 USB Ports and CompactFlash interface

LE-564E5G-P

With VIA Eden 533 MHz CPU (Fan Free) , SVGA.

3 X Intel 82551QM and 1 X Intel 82540EM Giga LAN,

2 COM,1 parallel, 2 USB Ports and CompactFlash interface

SPD-050-05

40W AC- DC Adapter with 5V, 8A Output

BackToTop
