LS-37L
3.5 inch Miniboard Intel® 8th & 9th Gen Core™ Desktop Processors

Support Intel® 8th & 9th Gen Core Desktop Processors with Intel® Q370 chipset, DDR4 up to 32 GB,
Integrated VGA, DVI, DisplayPort, HDMI, LVDS, 1 x Giga PHY LAN, 1 x Giga LAN, 4 x USB 2.0,
4 x USB 3.1 Gen2, 2 x RS232/422/485, 4 x RS232, HD Audio, 1 x PS/2, 2 x SATA3 with RAID, GPIO,
SMBUS, 1 x Mini-PCIe socket (support mSATA).

view larger image

-
Overview
-
Feature
-
Specification
-
Product Image  TOP  I/O
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview
Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers,
unveiled LS-37L 3.5 inch Miniboard embedded system board based on Intel® 8th & 9th Generation Desktop
processors.

The LS-37L Desktop 3.5 inch Miniboard platform is designed for the 8th & 9th generation Intel® Core™
Series processors in the FCLGA1151 sockets.support DDR4 memory (One DDR4 SO-DIMM 2666 MHz up
to 32GB).

The platform is based on Intel® UHD Graphics, this GPU offers 24 execution units (EUs) clocked at up to
1150Mhz (depending on the CPU model), The revised video engine now decodes H.265/HEVC completely
in hardware and thereby much more efficiently than before. Displays can be connected via 1 x VGA, 1 x
LVDS, 1 x DVI, 1 x HDMI and 1 x DP port up to three displays can be controlled simultaneously. LS-37L
offers lots of features including high-speed data transfer interfaces such as 4 x USB3.1 Gen2 and 2 x SATA3,
equipped with one Gigabit PHY Ethernet, one Gigabit Ethernet, and comes with PS/2 port, 4 x RS232 and
2 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and 1 MiniPCIe socket (Supports mSATA).

BackToTop

  Key Feature



  • CPUIntel® 8th & 9th Gen Core™ Desktop Processors in the FCLGA1151 sockets. (TDP up to 65W)

  • Memory1 x DDR4 2666 MHz SO-DIMM up to 32 GB, support Non-ECC, unbuffered memory. (i3, Pentium, Celeron CPU support 2400 MHz only)

  • Chipset: Intel® Q370 chipset.

  • Integrated GraphicsIntel® UHD Graphics.

  • DVI interface: 20-pin connector.

  • LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/+12V supply

  • DisplayPort interface: Onboard DisplayPort connector. (Only LS-37L)

  • HDMI interface: Onboard HDMI connector.

  • VGA interface: 16-pin connector.

  • LAN Interface1 x Intel® i219-LM Gigabit PHY LAN(Support iAMT 12.0), 1 x Intel® i210-AT Gigabit LAN.

  • Serial ATASupport 2 x SATA3.

  • Audio: Realtek ALC262 High Definition Audio.

  • Internal I/O2 x SATA3, 3 x RS232, 2 x RS232/422/485, 4 x USB2.0, 1 x DVI, 1 x VGA, 1 x LVDS, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS.

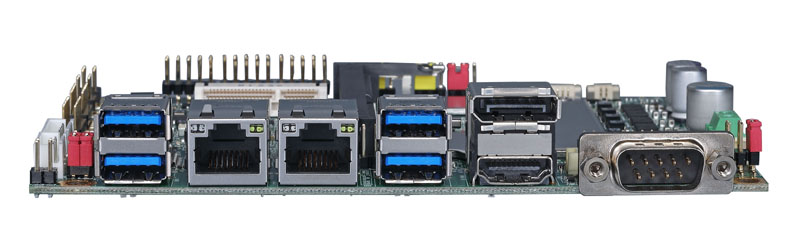

  • Rear I/O: 1 x DisplayPort(Only LS-37L), 1 x HDMI, 4 x USB3.1 Gen2, 2 x LAN, 1 x RS232.

  • Extended interface: 1 x PCIE Mini card(Support mSATA).

  • GPIO interfaceOnboard programmable 8-bit Digital I/O interface.

  • Power requirement: DC input 9~25V.

BackToTop

  Specification


Form Factor

3.5" Single Board Computer

Processor

8th & 9th Gen Core™ Desktop Processors. (TDP up to 65W)

Package Type: FCLGA1151

Memory

1 x 260-pin DDR4 2666 MHz SO-DIMM up to 32GB (Support Non-ECC, unbuffered memory, i3, Pentium, Celeron CPU support 2400 MHz only)

Chipset

Intel® Q370

Integrated Graphics

Intel® UHD Graphics

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

Intel® Q370 built-in 2 x Serial ATA3 interface up to 600MB/s

Support RAID 0, 1 and Intel Rapid Storage Technology.

VGA Interface

16-pin connector

 DVI Interface 20-pin connector

LVDS Interface

Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

 DisplayPort Interface  Onboard DisplayPort connector (Only LS-37L)
 HDMI Interface  Onboard HDMI connector

Audio Interface

Realtek ALC262 HD Audio

LAN Interface

1 x Intel® i219-LM Gigabit PHY LAN(Support iAMT 12.0), 1 x Intel® i210-AT Gigabit LAN

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

1 x PCIE Mini card (Support mSATA)

Internal I/O Port

2 x SATA3, 2 x RS232/422/485, 3 x RS232, 4 x USB2.0, 1 x DVI, 1 x LVDS, 1 x LCD inverter, 1 x GPIO, 1 x Audio (MIC-in & Line-out), 1 x PS/2(Keyboard & Mouse), 1 x SMBUS, 1 x VGA

Rear I/O Port

1 x DisplayPort(Only LS-37L), 1 x HDMI, 4 x USB3.1 Gen2, 2 x LAN, 1 x RS232

Power Requirement

 DC input 9~25V

Board Dimension

146 mm x 101 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 80°C

Relative Humidity

10%~90%, non-condensing



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LS-37L

8th & 9th Gen Core™ Desktop Processors, support DVI, HDMI, VGA, LVDS, DP

 LS-37LT

8th & 9th Gen Core™ Desktop Processors, support DVI, HDMI, VGA, LVDS, Header for 2nd VGA or 2nd LVDS (Note)

ADP-3355

DisplayPort to VGA module

ADP-3460

DisplayPort to LVDS module

 Note: There are two module (ADP-3355, ADP-3460), and you can choose one to support 2nd  VGA or 2nd  LVDS.
