LS-571
 5.25" SBC support Intel® Core™ 2 Duo  mobile processor
5.25" SBC with Intel® GME965 Chipset provides platform for
Intel® Core™ 2 Duo Merom with Socket P @ FSB 800 MHz, DDR2
up to 2.0 GB, 2 Giga LAN, CRT, LVDS, HDTV, DVI, SATA, USB
HD Audio, Digital I/O, RS232/422/485, PCI, 2 x Mini PCI

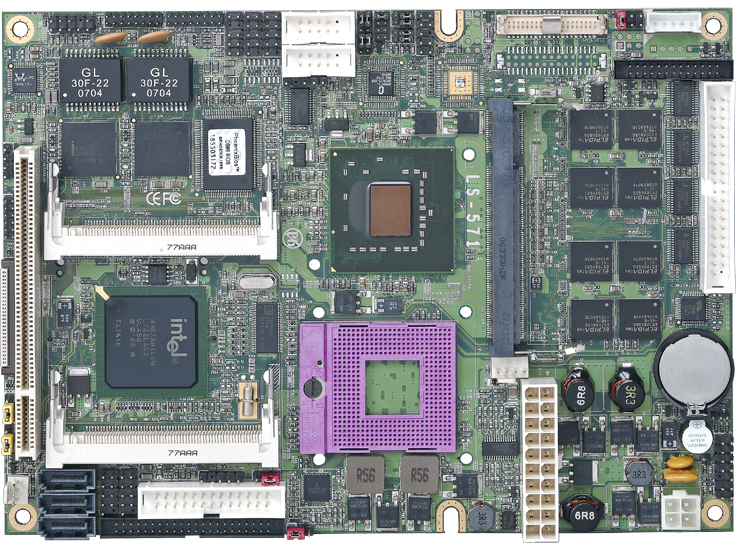

view larger image





-

Overview

-

Feature

-

Specification

-

Product Image

-

Ordering Guide

-

Datasheet (PDF format)

-

Technical Document

  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial embedded SBC, introduced the 5.25" SBC LS-571 that mainboard incorporates an Intel Socket P pin-out compatible with Intel Core 2 Duo Mobile Merom processors @ FSB 533/800MHz support for T7700, T7500, T7300, T7100 , Validated with the Mobile GME965 Express chipset, providing excellent flexibility for developers of embedded applications by offering outstanding graphics and I/O bandwidth, asset management capabilities, storage speed and reliability.

The LS-571 provides these advantage features & an excellent performance-per-watt choice in the Mini-ITX form factor, it is optimized for a broad range of embedded applications such as interactive clients, gaming, medical, POS, Digital Signage, Surveillance and industrial automation equipment.



BackToTop



  Key Feature

  • CPU: Intel® Core™ 2 Duo processor Merom with Socket P @ 800 MHz FSB.

  • Memory: 1 x 200-pin DDR2 533/667MHz up to 2.0 GB.                                        Optional onboard 1.0 GB DDR2 SDRAM .

  • Chipset: Intel® GME965 and ICH8M.

  • VGA Interface: built-in Intel® extreme GMA X3100 Technology.

  • LVDS interface: Onboard 24-bit Dual channel LVDS connector.

  • DVI Interface:  2 x 26-pin DVI connector. ( Optional )

  • Enhanced IDE: One UltraATA33 IDE interface supports up to 2 ATAPI Devices.

  • Serial ATA: 3 x Serial ATA interface with 300 MB/s transfer rate.

  • LAN Interface: 2 x Intel® 82573L Gigabit Ethernet .

  • Audio: Realtek ALC888 HD Audio.

  • Solid State Disk: IDE1 supports 44-pin DiskOnModule with +5V power supply. CompactFlash Type-II socket on the solder side .

  • GPIO interface: Onobard 8-bit Digital I/O interface.

  • Extended interface: 2 x Mini-PCI socket and 1 x PCI slot.



BackToTop



  Specification


Form Factor

5.25" SBC (203 x 146 mm)

CPU

Intel® Core™ 2 Duo processor Merom with Socket P @ 800 MHz FSB.

Memory

1 x DDR2 533/667 MHz SODIMM up to 2.0 GB .

Optional onboard  1.0 GB DDRII SDRAM.

Chipset

Intel® GME965 & ICH8M

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset internal timer for 1sec/min ~ 255 sec/min

Power Management

ACPI 1.0 compliant, supports power saving mode

PCI Enhanced IDE


1 x Ultra ATA/33 IDE channel up to 2 ATAPI devices

VGA Interface

Intel® GME965 integrated GMA (Graphic Media Accelerator) X3100 Technology

Video Memory

Up to 384 MB shared with system memory

Serial ATA Interface

3 x Serial ATA II Interface with 300 MB/s transfer rate.

Audio Interface


Realtek ALC888 HD Audio

LAN Interface

2 x Intel® 82573L Gigabit Ethernet

Solid State Disk

IDE1 supports 44-pin DiskOnModule +5V power supply

CompactFlash Type-II on the solder side.

(CompactFlash shared with IDE bus)

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extend Interface

1 x PCI slot & 2 x Min-PCI socket

DVI Interface

2 x DVI with onboard 26-pin DVI connector (optional)
    LVDS Interface     2 x 18/24-bit Dual-Channel LVDS interface (optional)
    Internal I/O Port

    1 x RS232/422/485, 5 x COM, 1 x silm FDD, 1 x IrDA ,

    1 x LPT, 8 x USB 2.0, 1 x 8-bit GPIO, 1 x Audio, 1 x CDIN

    LVDS and LCD inverter connector, 1 x DVI, 1 x TV-out

    1 x SMBus

Power Requirement

Standard 20-pin ATX power supply or

DC 12V input
    Board Dimension     203 mm x 146 mm (L x W)

Operation Temperature

 0 ~ 60ºC (32 ~ 140ºF)



Download Datasheet @ PDF format

BackToTop



  Ordering Guide

LS-571TXD-P

Intel® Core™ 2 Duo 5.25" SBC with onboard VGA, LVDS, TV-out, DVI, LAN, SATA, USB 2.0 ports, HD Audio, RS232/422/485, Min-PCI, PCI, SATA, CF socket

LS-571TXD-1G

Same as LS-571TXD-P, but with on-board 1GB DDR2 SDRAM

LS-571TXD2-P

Same as LS-571TXD-P, but with 2 x DVI

LS-571T2X-P

Same as LS-571TXD-P, but with 2 x CRT, 1 x LVDS

(without DVI interface)

LS-571TX2-P

Same as LS-571TXD-P, but with 1 x CRT, 2 x LVDS

(without DVI interface)

MP-954

Mini-PCI Card support 3 x RS232 & 1 x RS232/422/485

MP-323

Mini-PCI Card support 3 x IEEE 1394

MP-541D2

Mini-PCI Card support 2 x Gigabit LAN

MP-9200

Mini PCI 16-ch video capture module with SDK

MP-878D

Mini-PCI Capture card

MP-2501

Mini-PCI Wireless card
