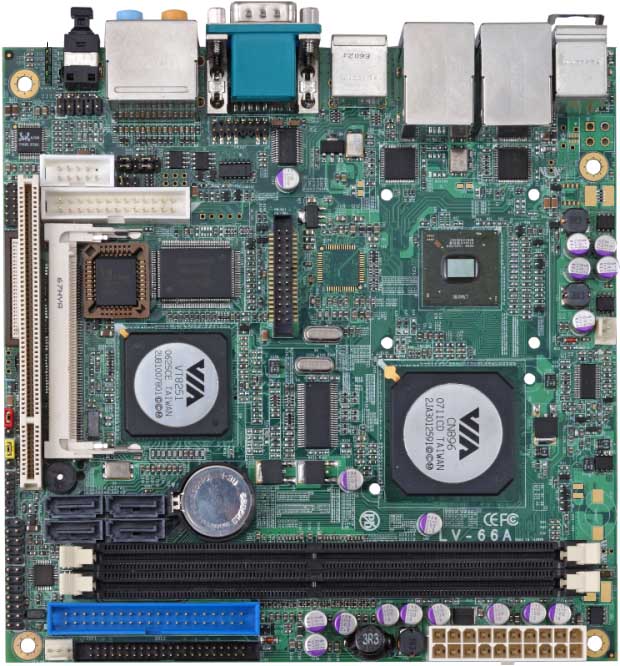

LV-66A
Onboard VIA C7 1.5 GHz with CN896 chipset , DDR2 up to 4.0 GB ,
Onboard VGA , LVDS or DVI interface , 2 x Giga LAN , HD audio ,
4 x SATA with RAID , USB , COM , PCI & Mini-PCI slot
|
Overview
|
Taiwan Commate Computer Inc. (COMMELL)
a
leading provider of Mini-ITX platform solution, today announced the
introduction of the new embedded LV-66A advanced digital
media Mini-ITX mainboard, designed to meet the needs
of applications on the rapidly emerging new generation of
smart digital entertainment devices such as set top boxes,
gaming machine, Kiosk and media centers, even NAS, POS and ATM application
is suitable. COMMELL's
LV-66A based on VIA CN896 that features a high bandwidth VIA Ultra
V-Link communication between the chipset's North and South bridges
at 533MB/sec. A dedicated CRT interface as well as outstanding
flexibility for additional video ports such as DVI or LVDS, The VIA
CN896 chipset featuring a DirectX® 9.0 3D accelerator for high
performance and a 2D accelerator for productivity
applications.
Through
the onboard VT8251 South Bridge, the LV-66A offers a comprehensive
rang of interacted storage, multimedia and connectivity option,
including Serial ATA with RAID, UltraDMA IDE, 8 x USB 2.0, 2 x Giga LAN,
2 x COM, The board also support HD Audio, with optional Compactflash
socket in the solder side for easily
using Solid State Disk.
|
BackToTop |
Feature
|
-
CPU: Onboard
VIA C7 1.5 GHz processor
-
Memory: 2
x 240-pin DDR2 SDRAM up to 4.0 GB
-
Chipset:
VIA CN896 and VT8251
-
PCI Enhanced
IDE: UltraATA
bus master IDE channel up to 4 ATAPI .
-
I/O
Ports: 2
x COM , 8 x USB2.0 , 1 x PS/2 , GPIO , FDD , LPT , SPDIF
-
DVI
Interface: Optional
onboard DVI interface (
LV-66AD )
-
LVDS
Interface: Optional 18/24-bit LVDS interface ( LV-66AX )
-
Serial
ATA:
4 x SATA with 300 MB/s transfer rate with RAID 0/1/0+1/5
-
GPIO
Interface: Onboard programmable 8-bit Digital I/O interface.
-
LAN
Interface: 2 x Realtek
8111C Giga Ethernet controller.
|
BackToTop |
Specification
|
-
Form Factor: Mini-ITX with 6.7 x 6.7
inches (17 x 17cm) of dimension
-
CPU:
Onboard
embedded VIA C7 1.5 GHz CPU
-
DRAM: 2 x 240-pin DDR2 400/533/667 SDRAM up to 4.0
GB
-
Chipset:
VIA CN896 and VT8251
-
PCI Enhanced IDE: UltraATA IDE channels up
to 4 ATAPI. (1 x 40-pin & 1 x 44-pin)
-
External
I/O Ports: 1x PS/2 keyboard and mouse, 2 x LAN, 6 x USB, 1 x COM, 1 x VGA, 1
x HD Audio, 1 x SPDIF
-
Internal
I/O Ports: 1 x RS232/422/485, 1 x LPT, 1 x IrDA, 1 x GPIO, 1 x Audio, 1 x
FDD, 1 x LVDS or DVI, 2 x USB
-
DVI
Interface: Optional onboard DVI interface ( LV-66AD )
-
LVDS
Interface: Optional 18/24-bit LVDS interface ( LV-66AX )
-
Serial
ATA: 4
x SATA with 300 MB/s transfer rate with RAID 0/1/0+1/5
-
Audio:
Realtek ALC888 7.1 channel HD codec
-
GPIO
Interface: Onboard programmable 8-bit
Digital I/O interface.
-
LAN Interface: 2 x
Realtek 8111C Giga Ethernet controller ( LV-66AX & LV-66AD only )
-
SSD:
IDE
support 44-pin DOM with +5V power supply, and CompactFlash
Type-II socket in the rear side ( Optional )
-
Watchdog Timer: Winbond
W83697UF with system generates 256 level reset
-
Expansive Interface: 1 x Slim PCI slot , 1 x Mini-PCI
-
Power Requirement:
Standard 20-pin ATX power supply
|
Download
datasheet @ pdf format
|
BackToTop |
Ordering Guide
|
|
LV-66A
|
Mini-ITX
Embedded with EBGA VIA C7 1.5 GHz CPU, VGA, SATA, 1
x LAN, HD
Audio, PCI & Mini-PCI
|
LV-66AX
|
Mini-ITX
Embedded with EBGA VIA C7 1.5 GHz CPU, VGA, SATA, Dual LAN, HD
Audio, PCI & Mini-PCI, LVDS
interface
|
LV-66AD
|
Mini-ITX
Embedded with EBGA VIA C7 1.5 GHz CPU, VGA, SATA, Dual LAN, HD
Audio, PCI & Mini-PCI, DVI
interface
|
BackToTop |
