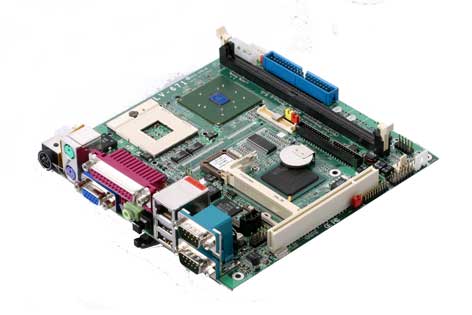

Mini-ITX Mobile Intel Pentium M Embedded Motherboard
Mini-ITX Pentium M Embedded Motherboard (170 x 170 mm)
Intel mPGA478 Pentium M (Fan Free Operating)@ 400 MHz FSB
Intel 855GME and ICH4 Chipset
1 GB DDR 266/333 DDR SDRAM
Intel 855GME GMECH Built-in Extreme Graphics with 256-bit 3D Engine
Intel Dynamic Video Memory up to 64 M Bytes / 40-pin LVDS LCD connector
Onboard Intel 82541PI Gigabit Ethernet controller
Onboard PCMCIA Type I/II slot
Onboard Intel ICH4 Hi-Speed USB 2.0 Interface
Onboard 5.1-Channel
|
Overview
|
|
COMMELL LV-671 is an all-in-one industrial compact
Pentium M level Mini-ITX platform
based on Intel 82855GME
and 82801DB Chipset, which offers a highly
integrated low power, high performance chipset
solution that has been optimized to support the IntelŪ
PentiumŪ M processor running at 2000+ MHz, high speed
DDR memory, integrated graphics controller with
Intel Extreme Graphics 2 dual independent displays ,
The integrated display controller comes with up to 64 MB
of dynamic video memory allocation and Single- or
Dual-channel LVDS panel support up to UXGA resolution.
The
LV-671 comes with floppy, PS/2 Keyboard and Mouse, 2 x
RS232C, UltraATA 100 EIDE and IrDA interface on-board,
Networking is provided by Intel 82541PI Gigabit
Ethernet. Six USB ports and 5.1 channel Audio are
also integrated. A Mini-PCI slot is available for system
expansion that can hold all types of Mini-PCI modules, for
more feature extension such as Centrino-like wireless
LAN, DES, modem or capture card. To Meet the
requirement of different display interface, LV-671
provides the optional Mini-AGP slot to use
Mini-AGP add-on card. Additionally, LV-671 is
also equipped with PCMCIA and CompactFalsh
Interface for easily using any communication
and memory card.
The
single DC supply is another important feature for
embedded system integrator.
COMMELL LV-671 is requiring 12VDC
or 19VDC
only, Moreover, The board features a protective design
to prevent when input voltage rises up to unexpectedly
voltage.
|
|
BackToTop |
Key Feature
|
-
Ultra
compact MiniITX form factor at 170 x 170mm (W x L) of
dimension
-
Intel
855GME GMECH built-in Intel
Extreme Graphics 2 with 266 MHz VGA core, 256-bit 3D/2D
graphic engine and Intel Dynamic Video Memory Technology up to 64 MB
shared with system memory
-
High
memory capacity with 1 GB DDR 266/333 SDRAM
-
Onboard
single / dual channel 18-/24-bit LVDS interface for TFT LCD
-
Mini-AGP
socket supports DVI / HDTV (Intel 855GME basis) and 4xAGP VGA add-in
module (Intel 855GME basis)
-
PCI,
Mini-PCI, and PCMCIA type-II PC card interface
-
Integrated
Intel 82541PI Gigabit Ethernet interface
-
One
40-pin and one 44-pin IDE port for both of desktop and slim type
ATAPI devices
-
Integrated
AC97 3D 5.1-Channel & S/P DIF audio interface
-
IDE-based
DiskOnModule
and CompactFlash
embedded flash disk interface
-
External
DC jack with +12V or +19V DC input (with external AC/DC adapter)
|
|
BackToTop |
Specification
|
Form Factor
|
Mini-ITX form factor at 170 x 170 mm
|
CPU
|
Micro-FCPGA Mobile Intel Pentium M / Celeron M
( Intel Celeron M 4xx series can't support )
|
Memory
|
One 184-pin DIMM socket
Support up to 1 GBytes DDR 266/333 SDRAM
|
Chipset
|
82855GME GMECH and 82801DB ICH4
|
Watchdog Timer
|
Programmable generates NMI or system reset watchdog timer
with 1 to 255 sec. / min. of time out value
|
Power Management
|
ACPI 1.0 compliant, supports power saving mode with ATX PSU
|
Real Time Clock
|
Intel ICH4 built-in RTC with onboard lithium battery
|
PCI Enhanced IDE
|
Dual UltraATA/100 bus master IDE channels
Support up to 4 ATAPI devices on 40-/44-pin IDE ports
Jumper selectable Vcc power output on 40-pin IDE1
for power cable free DiskOnModule flash disk
|
VGA Interface
|
Intel 855GME GMECH built-in Intel Extreme Graphics 2
with 266 MHz VGA core and 256-bit 3D engine
Intel Dynamic Video Memory up to 64 MB shared with system
External DB15 female connector on rear I/O panel
|
LVDS Interface
|
Intel 855GME GMECH built-in Intel Extreme Graphics 2
with onboard Chrontel CH7017A built-in LVDS transmitter
Resolution up to 1600 x 1200 @ 16M colors
Support 24-bit Dual channel LVDS TFT LCD
Onboard 20-pin Hirose DF13-20DP-1.25V connector
|
TV-out Interface
(Optional)
|
Intel 855GME GMECH built-in Intel Extreme Graphics 2
with MA-SDTV Mini-AGP add on card
|
LAN Interface
|
Intel 82541PI Giga Mbps Ethernet interface
|
Audio Interface
|
Intel ICH4 with onboard ACL650 AC97 3D audio codec
5.1 channel, line-in, line-out, Mic-in, CD-in and S/P DIF interface
|
PCMCIA Interface
|
PCI RICOH R5C475II PCMCIA PC card / CardBus controller
Comply with PCMCIA V.2.10 and JEIDA 4.2 Specification
16-/32-bit data bus, support hot swap function
Mix and Match 5V/3.3V PC Card, 16/32 Card, 3.3 CardBus Card
One PCMCIA type-I/II slot
|
Hi-Speed USB 2.0
|
Intel ICH4 chipset built-in Hi-Speed USB 2.0 interface
with 480 Mbps of data transfer rate and bootable setting in BIOS
|
Multi-I/O Port
|
2 x COM port, 1 x parallel, 6 x USB 2.0, 1 x IrDA, 1 x FDD,
1 x PS/2 keyboard and mouse port.
|
External I/O Port
|
Back panel : PS/2 keyboard and mouse port, VGA, parallel port,
Dual COM port, Speaker-out, SPDIF, LAN, Dual USB2.0,
DC power input.
Front panel : MIC, Line in & earphone or Central/Base,
Rear & Front audio outputs and 2 x Dual USB port
|
Solid State Disk
|
CompactFlash Card
CompactFlash socket supports CompactFlash Card (CFC)
Support PIO mode 4 up to 16.6M Bytes of data transfer rate
Default setting as secondary IDE port at master mode
Bootable, driver free IDE-based flash disk
Flash memory capacity up to 1G Bytes (and beyond)
DiskOnModule Flash Disk
IDE-based, bootable, driver free DiskOnModule flash disk
PIO mode 4 with 16.6 Mbps of data transfer rate
Flash memory capacity up to 1GBytes (and beyond)
|
Expansive Slot
|
One 32-bit PCI slot supports 2 bus master PCI via riser card,
and Mini-PCI or Mini-AGP port can be used optionally.
|
Environment
|
Power Requirement: Single 19V 6A DC input or 12V 10A DC input Board
Dimension (W x L): 170mm x 170mm with standard Mini-ITX form factor
Operation Temperature: 0 ~ 60oC (32 ~ 140oF)
|
|
|
|
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Guide
|
|
|
|
|
Mini-ITX Socket
479 Pentium M DDR Motherboard
with
Intel 855GME & ICH4 Chipset .
Intel
Extreme Graphic 3D VGA, 24-bit Dual Channel LVDS interface
Intel
Gigabit LAN, Hi-Speed USB 2.0, 5.1-CH & S/P DIF Audio,
PCMCIA,
Compact Flash and Mini-PCI socket |
|
LV-671MA |
Same as above but change Mini PCI to Mini AGP
|
|
LV-671NSMP |
Same as above LV-671MP but without PCMCIA and CF interface
|
|
LV-671NSMA |
Same as above LV-671MA but without PCMCIA and CF interface
|
|
CMB-671 |
Barebone system for LV-671 w/ 80W adapter, PCI riser card
|
|
SPD-080-12A |
AC-DC Adapter with 12V, 80W Mini DIN output
|
|
*The shipment excluded I/O panel |
|
