LV-6714

Mini-ITX  Motherboard support  Intel® 12th & 13th Gen Desktop Processor

Support Intel® 12th & 13th Gen Desktop Processor.

2 x DDR5 up to 64 GB, onboard HDMI, LVDS, DisplayPort, 3 x SATA3, HD Audio,

1 x Giga PHY LAN, 1 x 2.5Giga LAN, 2 x USB 2.0, 6 x USB 3.2 Gen2, 2 x RS232/422/485,

4 x RS232, 1 x PCIe X16, 1 x SIM slot, SMBus, GPIO, 1 x M.2 2280 (Key M), 1 x M.2 2230

 (Key E), 1 x M.2 3042 (Key B)

-

Overview

-

Feature

-

Specification

-

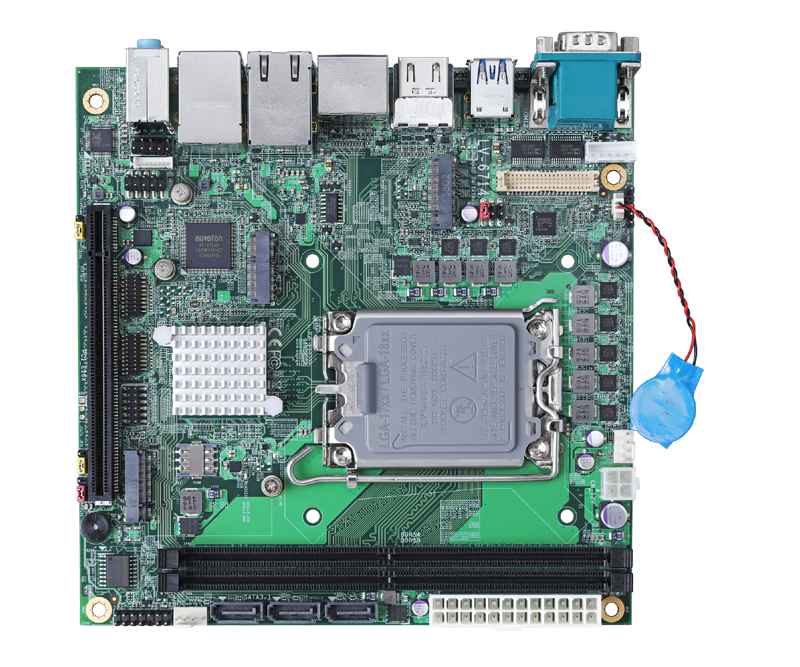

Product Image      I/O

-

Ordering Guide

-

Datasheet (PDF format)

-

Technical Document

  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers,
unveiled LV-6714 Mini-ITX embedded system board based with Intel® 12th & 13th Gen Desktop Processor.

Support DDR5 memory (Two DDR5 DIMM 4800 MHz up to 64GB).

The platform is based on Intel® 12^th & 13^th Gen Desktop Processor integrated UHD Graphics 770 / 730 / 710, Technology that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. Displays can be connected via one LVDS, two HDMI, and two DP, up to four displays can be controlled simultaneously support to provide its advanced solutions for imaging, machine vision and digital signage applications. LV-6714 offers lots of features including high-speed data transfer interfaces such as 6 x USB3.2 Gen2 and 3 x SATAIII, equipped with dual Gigabit Ethernet and comes with 4 x RS232 and 2 x RS232/422/485, 2 x USB2.0, Intel® HD Audio, and 1 x M.2 (Key M 2280), 1 x M.2 (Key E 2230), 1 x M.2 (Key B 3042), 1 x SIM slot, 1 x PCIe X16 slot.

BackToTop

  Key Feature

• CPU: Intel® 12^th & 13^th Gen Desktop Processor.

• Memory: 2 x DDR5 DIMM 4800MHz up to 64GB.

• Chipset: Intel® Q670E.

• DisplayPort interface: Onboard DisplayPort connector.

• LVDS interface: Onboard LVDS connector.

• HDMI interface: Onboard HDMI connector.

• LAN Interface: 2 x LAN.

• Serial ATA: 3 x SATA3.

• Audio: Realtek ALC888S HD Audio.

• Internal I/O: 3 x SATA3, 4 x RS232, 2 x USB2.0, 1 x LVDS, 1 x LCD inverter, 1 x GPIO, 1 x SMBus, 1 x Audio.

• Rear I/O: 2 x HDMI, 2 x DisplayPort, 6 x USB3.2 Gen2, 2 x LAN, 2 x RS232/422/485, 1 x Audio.

• Expansion: 1 x PCIe X 16 slot, 1 x SIM slot, 1 x M.2 (Key M), 1 x M.2 (Key E), 1 x M.2 (Key B).

• GPIO interface: 8-bit Digital I/O interface.

• External Audio: Line-in, Line-out, MIC-in.

• Power requirement: Standard 24-pin ATX power supply and 4-pin 12V.

BackToTop

  Specification

Realtek ALC888S HD Audio

Note: Add ADP-3355 supports VGA or Add ADP-3460 supports 2nd LVDS, please contact our sales for OEM version.

Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LV-6714

12^th & 13^th Gen Intel® Desktop Processor, Q670E, support HDMI, DP, LVDS
