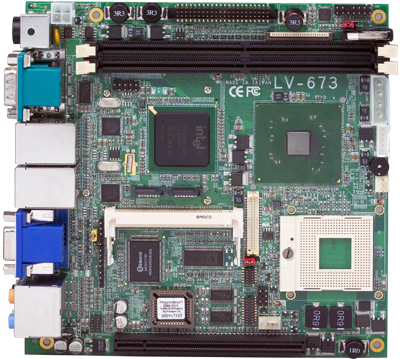

Intel Pentium M / Celeron M Mini-ITXexpress Motherboard
Intel Pentium M processor with Intel 915GME & ICH6M
DDR2 up to 2GB , Intel GMA 900 technology , Intel 915GME integrated
18-bit LVDS Onboard PCI-Express 16x and Mini-PCI socket ,
Support CompactFlash and PCMCIA on solder side.
6 x USB2.0 , 2 x RS232 , 2 x SATA, 1 x SPDIF , 1 x IrDA , 1 x GPIO .
|
Overview
|
|
COMMELL, the worldwide leader of Industrial Mini-ITX
motherboards, introduced the Mini-ITX
platform LV-67 3 based on Intel 915GME and ICH6M
Chipset, which supports Pentium M
/ Celeron M processor, dual channel DDR2
400/
533 MHz SDRAM memory
architecture in configurations of up to 2 GB RAM,
and PCI Express 16x graphic interface, The new IntelŪ
Graphics Media Accelerator (GMA) 900 provides incredible
visual quality, versatile display options, 3D
performance for consumers, and added
reliability for business . The ICH6M
chip integrated
with Realtek ALC880 7.1-CH HD Audio. Onboard 16x PCI-Express
PCMCIA socket and CompactFlash socket on solder side.
The LV-67 3 comes with floppy, PS/2 Keyboard and Mouse,
4 x RS232C, UltraATA100 IDE,
2 x SATA and IrDA
interface on-board, Networking is provided by Marvell
2 x 8053
PCIE Gigabit Ethernet LAN. 6 x USB2.0 ports
for 40X faster data transfer rate and backward
compatible to support USB 1.0 devices, 1 x GPIO
and 1 x SPDIF port.Additionally, LV-673 is
also equipped with Mini-PCI Interface for easily
using any wireless card.
The COMMELL LV-67 3 is designed to meet the needs of
applications that require extraordinary computing
performance and reliability , which also well
supports with the Windows 2000/XP, Linux operation
systems.
|
|
BackToTop |
Key Feature
|
-
CPU: Intel
Pentium M / Celeron M processor.(
Intel Celeron M 4xx series can't support )
-
Memory: 2 x 240-pin DDR2
SDRAM up to 2.0GB.
-
Chipset:
Intel 915GME and ICH6M .
-
VGA
Interface: built-in IntelŪ Graphics Media
Accelerator (GMA) 900,
support 18-bit dual-channel
LVDS interface.Onboard 5-pin inverter connector.
-
PCI Express bus: PCI
Express x16 graphics delivers up to 4 GB/s per direction, 3.5 times
more bandwidth than AGP8X.
-
Enhanced
IDE: One
Enhanced IDE interface support up to 2ATAPI
devices. 1 x 44-pin UltraATA 33 IDE
connector.
-
Serial ATA:
2
x Serial ATA interface support up to
150 MB/s .
-
LAN
Interface: 2
x Marvell 8053 PCIE Gigabit Ethernet controllers .
-
Audio: Realtek
ALC880 Codec . Intel High Definition Audio compliance.
-
Internal
I/O: 2 x RS232 ports , 1 x slim floppy port , 1 x GPIO port , 1
x SPDIF port , 1 x CD audio input , 1 x 5 x 2-pin of 2 USB ports , 1 x IrDA port .
-
External
I/O
: 2
x RS232 ports, 1 x PS/2 keyboard and mouse ports , 1 x DB15 , 2 x
USB , 2 x RJ45 , 1 x 6 jacks audio , 1 x Mini-Din DC input.
-
Expansion: 1 x
Mini-PCI socket , 1 x PCI-Express 16x slot , 1 x CompactFlash slot.
-
Card
Bus: Ricoh R5C475II supports 1 x PCMCIA type II slot on solder
side.
-
Super
I/O:
Winbond W83627THF
-
Power
Requirement:
DC 12V input .Onboard additional +12V connector.
|
|
BackToTop |
Specification
|
|
Form Factor |
Mini-ITXexpress
Motherboard |
|
CPU |
IntelŪ
PentiumŪ M / Celeron M Package
type: FC-PGA478 Front
side bus: 400/533 MHz (
Intel Celeron M 4xx series can't support )
|
|
Memory |
2
x DDR2
400/533 MHzSDRAM
up to 2GB |
|
Chipset |
Intel
915GME & ICH6M |
|
Real
Time Clock
|
Chipset
integrated RTC with onboard lithium battery
|
|
Watchdog
Timer |
Generates
a system reset
internal
timer for 1min ~ 255 min
|
|
Power
Management |
ACPI
1.0 compliant, supports power saving mode with DC adapter
|
|
PCI
Enhanced
IDE |
1 x Ultra ATA100 IDE channel up to 2 ATAPI devices
|
|
VGA Interface |
Intel
915G integrated GMA(Graphic Media Accelerator) 900 Technology. |
|
Video
Memory |
Up to
128MB shared with system memory |
|
Serial ATA
Interface |
2
x Serial ATA Interface with 150MB/s transfer rate
|
|
Audio
Interface |
Intel ICH6M integrated with Realtek ALC880 HD Audio
|
|
LAN Interface |
2
x Marvell 8053 PICE Gigabit LAN . |
|
Solid
State Disk |
IDE1
supports DiskOnModule +5V power supply
1
x CompactFlash socket on solder side.
|
|
GPIO
Interface |
Onboard
programmable
8-bit digital I/O interface
|
|
Extend
Interface |
1
x Onboard PCI-Express X16 slot ( X1 mode compatible)
1
x Min-PCI socket
1
x PCMCIA Type II slot on solder side
|
|
External I/O
Port |
2
x RJ45 LAN port, 1 x DB15 VGA port, 1 x PS/2 Keyboard / Mouse ports,
2 x RS232 Serial port , 1 x DC Mini-DIN, 4 x USB 2.0 ports
|
|
External Audio
Port |
Line-in , Front, MIN-in , Surround , Center , Back Surround |
|
Power Requirement |
DC
12V |
|
Board Dimension |
170mm x 170 mm (L x
W) |
|
Operation
Temperature |
0 ~ 60oC (32 ~ 140oF)
|
|
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Guide
|
|
|
|
LV-673E
|
Intel
Pentium M Mini-ITXexpress Motherboard with 915GME & ICH6M
chipset.Onboard
VGA , Dual Gigabit LAN , SATA , USB 2.0 , Audio ,
4
x RS232 serial ports , Mini-PCI , PCI-Express.
|
|
LV-673ENS
|
Same
as above but without PCMCIA and CF socket
|
|
LV-673L
|
Same
as LV-673, but with ICH910GMLE chipset and Intel Celeron
M
600
MHz processor. ( Don't support PCI-Express X16 card )
|
|
LV-673LNS
|
Same
as LV-673NS, but with ICH910GMLE chipset and Intel Celeron
M
600 MHz processor. ( Don't support PCI-Express X16 card )
|
|
SPD-080-12A
|
12V,80W
AC-DC Adapter with Mini DIN output (PSE)
|
|
SPD-100-12A
|
12V,100W
AC-DC Adapter with Mini DIN output (PSE)
|
|
SPD-120-12A
|
12V,120W
AC-DC Adapter with Mini DIN
output
( without PSE but Medical level)
|
|
CMB-673
|
Barebone
system for LV-673E w/ 120W adapter
|
|
PCIE-SDVOD
|
PCI-Express
add-on card for signal DVI interface.
|
|
PCIE-SDVOD2
|
PCI-Express
add-on card for dual DVI interface.
|
|
MP-323
|
Mini-PCI
module for IEEE 1394A
|
|
