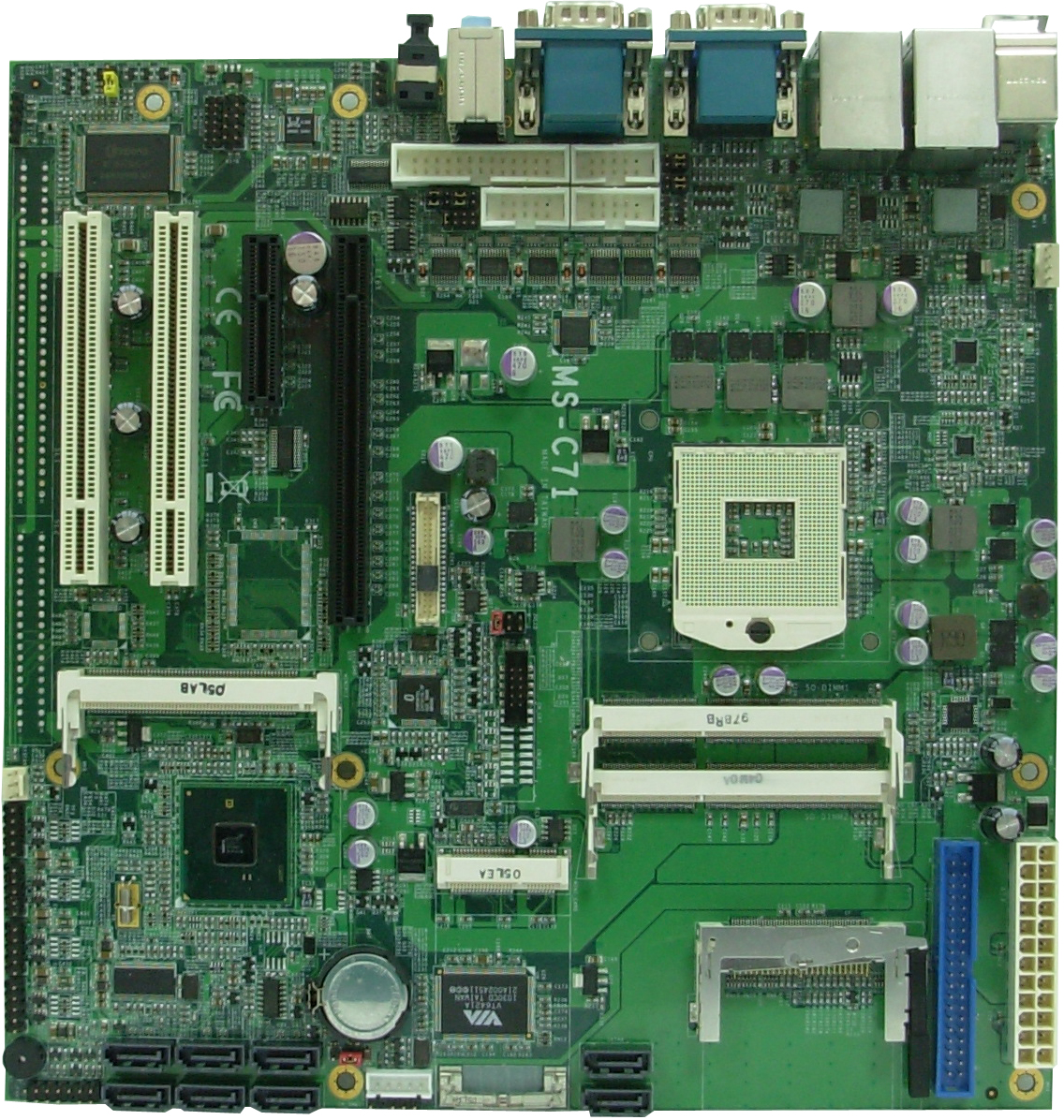

MS-C71
Intel® Core™ i7 / i5 / i3 Mobile  MicroATX Motherboard
Support Intel® Core™ i7 / i5 / i3 / Mobile CPU with Mobile Intel® QM57 Express
8GB DDR3, 2 x Giga LAN, 12 x USB 2.0, 6 x COM, 8 x SATA, HD Audio, LPT
PCI-Express X16/X4 slot, PCI slot , Mini-PCIe & Mini-PCI socket


view larger image





-

Overview

-

Feature

-

Specification

-

Product Image

-

Ordering Guide

-

Datasheet (PDF format)

-

Technical Document

  Overview

COMMELL's  MS-C71 MicroATX mainboard is provided for up to 8GB of DDR3 800/1066 MHz data transfer rate dual-channel system memory, 1-GB and 2-GB DDR3 DRAM technologies are supported for x8 and x16 devices. When along with Intel 32nm Core i7/i5/i3 processor that provided  Intel HD graphic function with Dynamic Video memory Technology, MPG2/WMV9/VC1/AVC hardware acceleration, advanced pixel adaptive De-Interlacing and High quality Scaling, additional display features include 24-bit dual channel LVDS or DVI interface optional.

The MS-C71 comes with PS/2 Keyboard and Mouse, 5 x RS232C and 1 x RS232/422/485 , Networking is provided by Intel 2 x 82574L Giga LAN, 12 x USB2.0 ports, It offers support for Intel High Definition Audio enables increased bandwidth for high quality audio.  Also support for eSATA enables the full SATA interface speed up to 3GB/s, support for RAID 0,1,5, and 10 enables high reliablity for personal data, or maximum storage performance for intensive applications. Mini PCI, Mini PCIe , PCI and PCIE slots easily using any other add-on cards.
