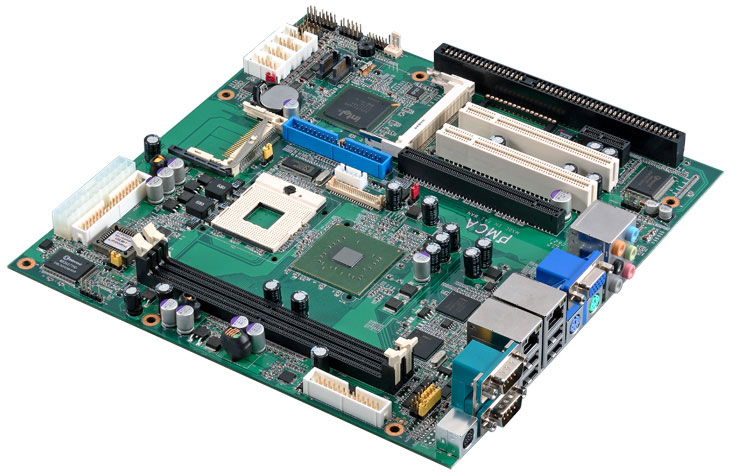

PMCA - Intel Core Duo / Core 2 Duo Micro ATX Motherboard

Micro ATX Motherboard based on Intel Core 2 Duo / Core Duo
2 x Giga LAN , High Definition  Audio , SATA , LVDS , DOC
One PCI-Express x16 , One PCI-Express x1 , 2 x PCI , and ISA
Mini-PCI & CompactFlash socket , 6 COM , 8 USB2.0


view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document

  Overview

COMMELL, the leader of Industrial motherboard announced the PMCA the next generation mobile Micro ATX motherboard with the latest Intel Centrino mobile technology 945GME Express chipset, which support Intel Core Duo / Core Solo processor @ FSB 533/667 MHz, it's enhanced to handle today's demanding software applications - such as graphic-intensive or serious number-crunching programs.

COMMELL's PMCA Micro ATX motherboard supports for  667 MHz Front Side Bus to up to 25% increase in Front Side Bus bandwidth over the previous generation and support for Dual channel DDR2 667 MHz up to  3GB Memory. Integrated 256-bit graphic core running at 400 MHz and DirectX 9.0 3D hardware acceleration, based on Intel Graphics Media Acceleator 950 architecture, delivers a 2 times improvement in graphics performance over the previous generation chipset, the integrated display controller comes with up to 2048*1536 resolution for both analog and digital display, Multiple display types ( LVDS / DVI / VGA ) .



BackToTop

  Key Feature
  • CPU: Intel CoreTM Duo / Core 2 Duo Merom with Socket M @  533 / 677 MHz FSB.

  • Memory: 2 x 240 pin DDR2 533/677 MHz up to 3.0 GB.

  • Chipset: IntelŪ 945GME and ICH7M.

  • VGA Interface: built-in IntelŪ Graphics Media Accelerator (GMA) 950.

  • PCI Enhanced IDEOne Ultra ATA/100 IDE channel up to 2 ATAPI devices.

  • Serial ATA: 2 x Serial ATA  Interface with 150 MB/s transfer rate.

  • LAN Interface2 x Intel Gigabit LAN.

  • AudioRealtek ALC880 HD Audio

  • Extended Interface: PCI-Express 16x / 1x slots , 2 x PCI and 1 x ISA slots.

  • Soild State Disk: DiskOnChip, IDE support 40-pin DOM, CompactFlash Type-II socket. DiskOnChip socket .

  • USB: 8 Hi-Speed USB 2.0 interface with up to 480 Mbps of data transfer rate.

  • I/O Ports: 5 x RS232 & 1x RS232/422/485 ports, IrDA, FDD, PS/2 keyboard and mouse ports, 1 x SPDIF. 1 x LPT.

  • Digital I/O: Supports 8-bit digital I/O.

  • Watchdog: Generates a system reset  with internal timer for 1 to 255 sec. / min



BackToTop

  Specification


Form Factor

Industrial Micro ATX Motherboard

CPU

Intel CoreTM Duo / Core 2 Duo Merom with Socket M @  533 / 677 MHz FSB.

Memory

2 x DDRII  533/667 MHz SDRAM t up to 3.0 GB

Chipset

Intel 945GME and ICH7M

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset  with 1 to 255 sec. / min.

PCI Enhanced IDE

One Ultra ATA/100  IDE channel  up to 2 ATAPI devices

VGA Interface

Intel 945GMintegrated GMA 950 ( Graphics Media Accelerator ) Technology

Video Memory

Up to 224MB shared with system memory

Serial ATA Interface

2x Serial ATA  Interface  with 150 MB/s transfer rate

Audio Interface

Realtek ALC880 HD Audio

LAN Interface

2 x Intel 82573L Gigbit Ethernet controllers

Solid State Disk

IDE 1 supports DiskOnModule with +5V power supply

1 x  Compact Flash Socket

32-pin DIP JEDEC DiskOnChip Socket

GPIO Interface

Onboard programmable 8-bit  Digital I/O interface

Internal I/O Port

1 x FDD, 4 x USB ports,1 x IrDA, 4 x RS232 ports, 1 x SPDIF, 1 x GPIO , 1 x LPT , 1 x LVDS , 1 x LCD Inverter ,  1 x CDIN

External I/O Port

2 x RJ45 LAN port , 1 x PS/2 keyboard / Mouse ports , 1 x DB15 VGA port , 1 x RS232 serial port , 1 x RS232/422/485 ,  1 x LPT, Audio , 4 x USB

Power Requirement

Standard 24-pin ATX power connector ( 20-pin is compatible)

    Board Dimension     244 x 244 mm (L x W)

Operation Temperature

 0 ~ 60°C (32 ~ 140°F)



Download Datasheet @ PDF format

BackToTop

  Ordering Guide


PMCAE

Intel Core Duo / Core Solo Micro ATX  motherboard with onboard VGA, LVDS, Gigabit LAN, SATA , USB 2.0 Ports, Audio, Compact Flash, DOM / DOC, PCI-Express x16 / x1 slot , PCI and ISA slot .
