 Intel® Core™ 2 Duo mobile MicroATX Motherboard

MicroATX Motherboard with Intel® GME965 provides platform for
Intel® Core™ 2 Duo Merom with Socket P @ FSB 800 MHz, DDR2
up to 3GB, 2 Giga LAN, CRT, LVDS , HDTV, 1394, SATA, COM
HD Audi, PCI-Express , PCI and ISA slots

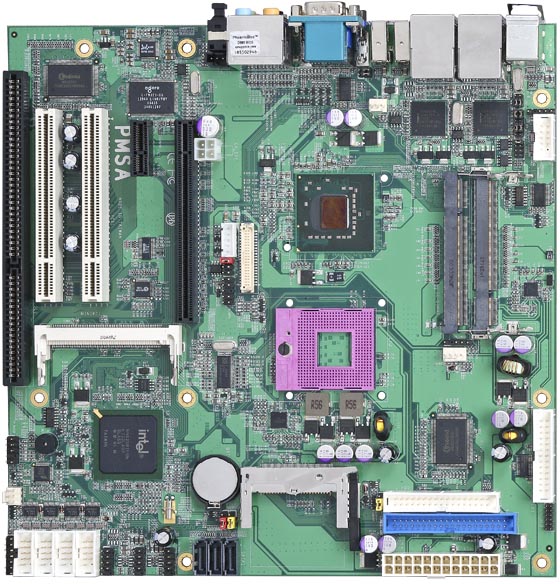

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial SBC, introduced the MicroATX - PMSA that mainboard incorporates an Intel® Socket P pin-out compatible with Intel® Core 2 Duo Mobile Merom processors @ FSB 533/800MHz support for T7700, T7500, T7300, T7100, Validated with the Mobile GME965 Express chipset, providing excellent flexibility for developers of embedded applications by offering outstanding graphics and I/O bandwidth, asset management capabilities, storage speed and reliability.

The PMSA provides these advantage features & an excellent performance-per-watt choice in the MicroATX form factor, it is optimized for a broad range of embedded applications such as interactive clients, gaming, medical, POS, Digital Signage, Surveillance and industrial automation equipment.



BackToTop

  Key Feature
  • CPU: Intel® Core™ 2 Duo processor Merom with Socket P @ 800 MHz FSB.

  • Memory: 2 x 200-pin DDR2 533/667MHz up to 3.0 GB.

  • Chipset: Intel® GME965 and ICH8M.

  • VGA Interface: built-in Intel® extreme GMA X3100 Technology.

  • LVDS interface: Onboard 24-bit Dual channel LVDS connector.

  • Enhanced IDE: One 40-pin IDE interface supports up to 2 ATAPI Devices.

  • Serial ATA: 3 x Serial ATA interface with 300 MB/s transfer rate.

  • LAN Interface: 2 x Intel® 82573L Gigabit Ethernet .

  • Audio: Realtek ALC888 HD Audio.

  • Solid State Disk: IDE1 supports 40-pin DiskOnModule . CompactFlash Type-II socket

  • IEEE 1394: 2 x IEEE1394 port.

  • GPIO interfaceOnobard 8-bit Digital I/O interface.

  • Extended interface: PCIE X16 & PCIE X1 , 2 x PCI , 1 ISA and 1 Mini-PCI socket

  • Rear I/O ports: PS/2 Keyboard/Mouse, LAN, USB 2.0, IEEE 1394, COM, VGA, Audio. SPDIF



BackToTop

  Specification


Form Factor

MicroATX  Motherboard (244 x 244 mm)

CPU

Intel® Core™ 2 Duo processor Merom with Socket P @ 800 MHz FSB.

Memory

2 x DDR2 533/667 MHz SODIMM up to 3.0 GB

Chipset

Intel® GME965 & ICH8M

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset internal timer for 1sec/min ~ 255 sec/min

Power Management

ACPI 1.0 compliant, supports power saving mode

PCI Enhanced IDE

1 x 40-pin IDE channel up to 2 ATAPI devices

VGA Interface

Intel® GME965 integrated GMA (Graphic Media Accelerator) X3100 Technology

Video Memory

Up to 384 MB shared with system memory

Serial ATA Interface

3 x Serial ATA II Interface with 300 MB/s transfer rate.

Audio Interface

Realtek ALC888 HD Audio

LAN Interface

2 x Intel® 82573L Gigabit Ethernet

Solid State Disk

IDE supports 40-pin DiskOnModule , CompactFlash Type-II

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extend Interface

PCIE X16 & PCIE X1 , 2 PCI , 1 ISA and 1 Mini-PCI socket

External I/O Port

1 x  PS/2 Keyboard / Mouse, 2 x RJ45 LAN, 4 x USB 2.0

2 x IEEE 1394, 1 x COM, 1 x VGA, 1 x Audio,  1 x SPDIF

    Internal I/O Port

    1 x RS232/422/485, 4 x RS232,  1 x FDD, 1 x IrDA , 1 x LPT

    6 x USB 2.0, 1 x 8-bit GPIO, 1 x Audio, 1 x CDIN

    LVDS and LCD inverter connector, 1 x TV-out

Power Requirement

Standard 24-pin ATX power supply

    Board Dimension     244mm x 244mm (L x W)

Operation Temperature

 0 ~ 60ºC (32 ~ 140ºF)



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

 PMSA

Intel® Core™ 2 Duo MicroATX Motherboard with onboard VGA, LAN SATA, USB 2.0 ports Audio, IEEE1394, RS232/422/485, PCI-Express

PCI , ISA and Mini-PCI .

    MP-954 Mini-PCI Card support 3 x RS232 & 1 x RS232/422/485
    MP-323 Mini-PCI Card support 3 x IEEE 1394
    MP-541D2 Mini-PCI Card support 2 x Gigabit LAN
    MP-9116 Mini-PCI 4 ~ 16 channel Capture card
    MP-878D Mini-PCI Capture card
    MP-2501 Mini-PCI Wireless card
