8-ch Video Input @ D1 resolution Mini-PCIe video capture card
Not support Intel baytrail products |
|
|
| Features |
|
-
Mini-PCIe interface
-
Up to 8-channel Video inputs
-
Support
D1 resolution
-
Windows Driver & SDK provide |
|
|
|
Specifications
|
|
Form
Factor
|
Mini-PCIe Interface
|
|
Input
Type
|
D-Type: DB9 x
2 for Video & Audio
|
|
Video
Input (s)
|
8
(BNC)
|
|
Audio
Input (s)
|
8
(RCA) ( output 2 channels )
|
|
Video
Resolution - NTSC/PAL
|
Max
total 240 fps @ D1
|
|
Software
|
Windows driver
/ SDK ( Directshow Support )
|
|
Support
GPIO
|
No
|
|
Dimensions
|
51mm x 30mm
|
|
Compliance
|
RoHS
, CE , FCC
|
|
User's
Manual
|
User's
manual , Datasheet
|
|
Driver
|
Windows
XP 32bit & Windows 7 32bit
|
|
|
Accessories
|
8-ch BNC video
cable x1
8-ch RCA
audio cable x1

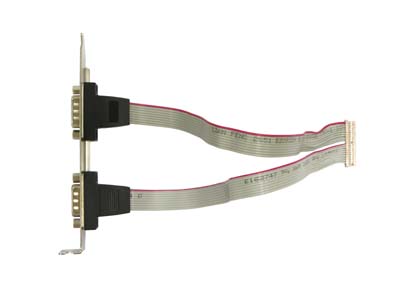

DF14 to dual D-sub 9 Cable ( w/ bracket) x1 |
|
|
Ordering
Code
|
|
MPX-25858
|
8 channels Video & Audio inputs Mini-PCIe capture Card with SDK provided
|
|
|
|
|
|
|
|
