1- ~ 8-ch Mini-PCIe video capture card with Software Develop Kit
|
|
 |
| Features |
|
-
Mini-PCIe interface
-
Up to 8-channel Video inputs
-
Support
D1 , Half-D1 , CIF resolution
-
Windows Driver & SDK provide |
|
|
|
Specifications
|
|
Form
Factor
|
Mini-PCIe Interface
|
|
Input
Type
|
D-Type: DB9 x
1 for Video
|
|
Video
Input (s)
|
4
(BNC)
- up to 8 (optional)
|
|
Total
Recording Rate
|
30 fps (NTSC)
, 25 fps (PAL)
|
|
Audio
Input (s)
|
4
(RCA) - (optional)
|
|
Video
Resolution - NTSC/PAL
|
D1 ,
Half-D1 , CIF
|
|
Software
|
Windows driver
/ SDK
|
|
Support
GPIO
|
No
|
|
Dimensions
|
51mm x 30mm
|
|
User's
Manual
|
User's
manual ,Datasheet,
Driver
|
|
|
Accessories
|
4-ch BNC video
cable
D-sub9 cable w/ bracket x 1 |
|
|
Ordering
Code
|
|
MPX-885
|
4 channel Mini-PCIe
capture card with SDK
|
|

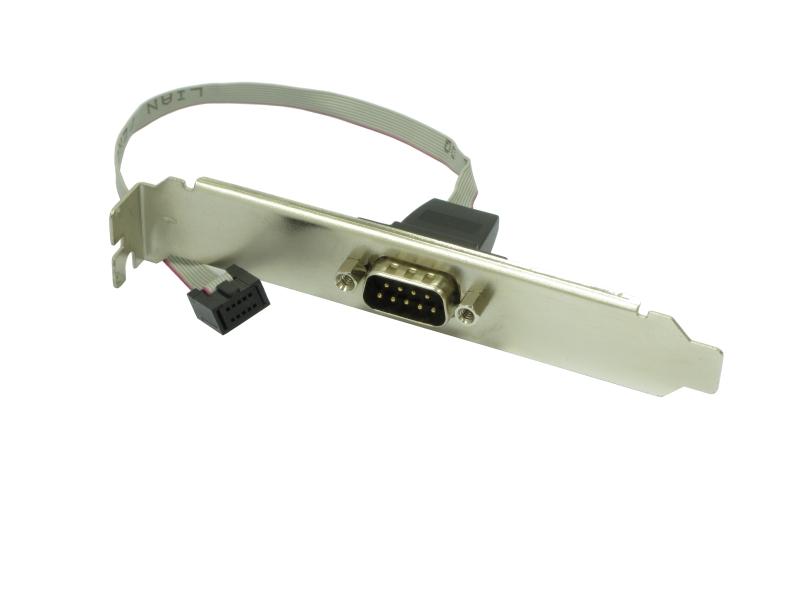

OALES-BKU1
|
1
x 10-pin header to 1 x D-sub 9 Cable (MPX-885 Audio)
|
|

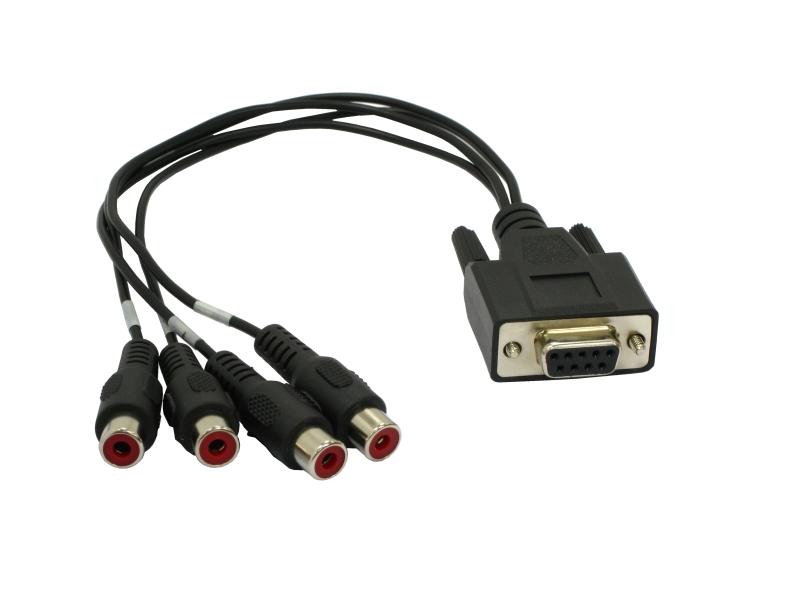

OALDB9-AUD4-885
|
1
x D-sub 9 to 4 channel Audio Cable (MPX-885 Audio)
|
|

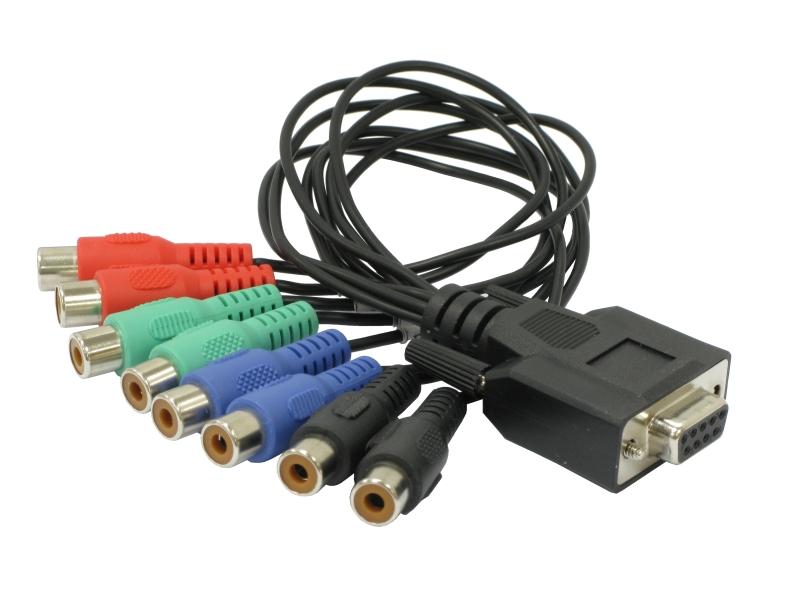

OALDB9-HDTV-885
|
1
x D-sub 9 to 2 x YPbPr & 2 x Composite Cable (MPX-885 Video)
|
|

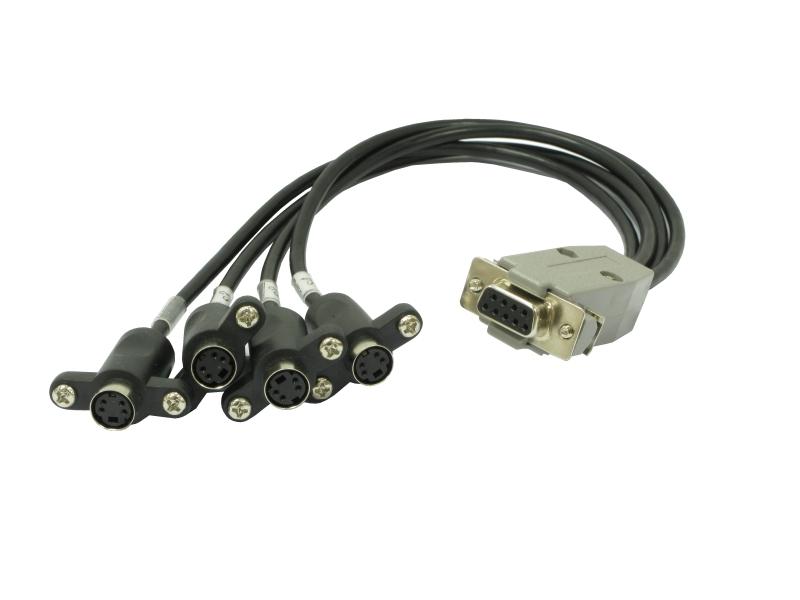

OALDB9-4S-885
|
1
x D-sub 9 to 4 x S-Video Cable (MPX-885 Video)
|
|

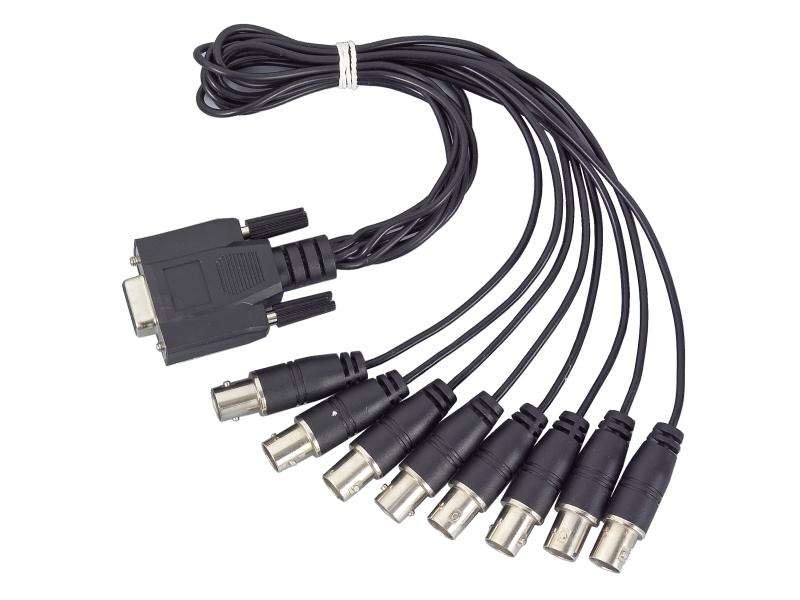

OALBNCE8
|
1
x D-sub 9 to 8 x BNC connector Cable (MPX-885 Video)
|
|

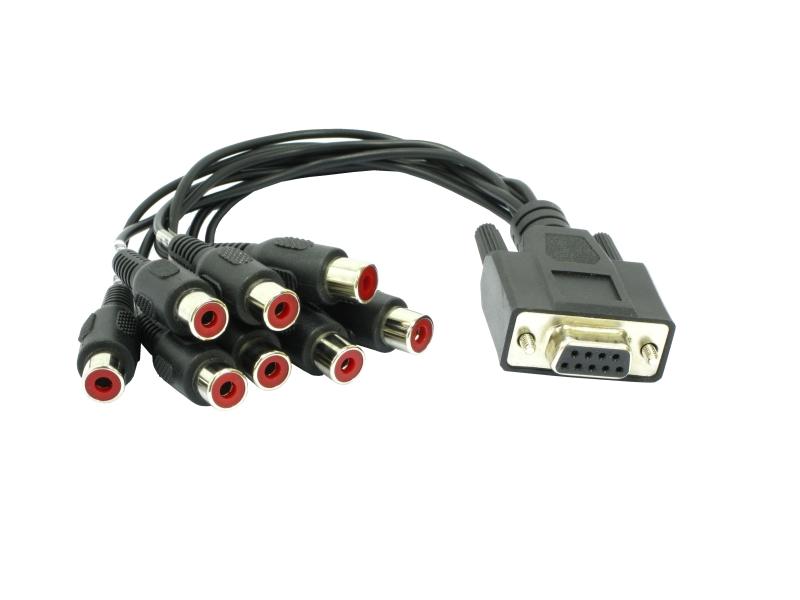

OALDB9-AUD8
|
1
x D-sub 9 to 8 x Composite Cable (MPX-885 Video)
|
|
|
Before
purchasing, please download to check compatibility chart here
!
|
|
|
|
|
