LP-170
    Pico-ITX with Intel® Atom Solution

Intel® AtomTM Processor, Onboard LVDS, VGA, Giga LAN, USB2.0, HD Audio,
SATA, CF socket, PCIE Mini card

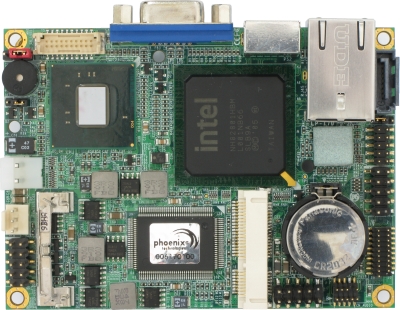

view larger image

-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
Overview

LP-170 consists of the Intel ATOM N450/ D410/ D510 and ICH8M, Graphic Processing Unit features power-efficient 32-bit 3D graphics core based on Intel GMA 3150 architecture, video capability with up to 384MB of shared graphics memory, delivers sophisticated graphics for large display applications and with Dual display types such as VGA+LVDS, Enables smoother playback for MPEG-2 codec, a standard video compression format used on Blu-ray, DVDs, broadcasting, and broadband content.

BackToTop



Key Feature
  • CPU: Intel® AtomTM N450/ D410 single core / D510 / D525 dual core processor.

  • Memory1 x DDR2 SO-DIMM up to 2GB.

  • Chipset: Intel® ICH8M Chipset.

  • VGA Interface: Intel® integrated extreme GMA 3150 technology.

  • LVDS interface: Onboard 18-bit single channel LVDS.

  • Serial ATA: Support 1 x SATAII interface with 300MB/s transfer rate

  • Solid State Disk: 1 x Compact Flash Type II socket.

  • Audio: Intel® ICH8M integrated with Realtek ALC888 HD Audio.

  • LAN InterfaceIntel® 82583V Giga LAN.

  • Extended interfaceOne PCIE mini card socket.

  • I/O ports: 2 x RS232 Serial Ports,4 x USB2.0 ports, 1 x DB15 VGA port, 1 x  PS/2 keyboard and mouse ports.

  • Power: DC12V in.

BackToTop



Specification

Form Factor

Pico-ITX

CPU

Intel® AtomTM N450, 1.66GHz, 512KB cache (LP-170G)

Intel® AtomTM D410, 1.66GHz, 512KB cache (LP-170H)

Intel® AtomTM D510, 1.66GHz, 1MB cache (LP-170A)

Intel® AtomTM D525, 1.80GHz, 1MB cache (LP-170C)

Package type : Micro-FCBGA (FCBGA559)

Memory

1 x 200-pin DDR2-667 SO-DIMM up to 2GB (LP-170G)

1 x 200-pin DDR2-667 SO-DIMM up to 4GB (LP-170H/A/C)

Support Non-ECC, unbuffered memory only

Chipset

Intel® ICH8M

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset internal timer for 1min(sec) ~ 255min(sec)

Power Management

ACPI 1.0 compliant, supports power saving mode

Integrated Graphics

Intel® integrated extreme GMA 3150 (Graphic Media Accelerator) Technology

Video Memory

Up to 384MB shared with system memory

LVDS Interface

Chipset Integrated 18-bit single channel LVDS

Serial ATA Interface

1 x SATAII interface with 300MB/s transfer rate

Solid State Disk

1 x Compact Flash Type-II

Audio Interface

Intel® ICH8M integrated with Realtek ALC888 HD Codec

LAN Interface

1 x Intel® 82583V Gigabit Ethernet controller

Expansion Interface

1 x PCIe mini card socket

Internal I/O Port

1 x Audio, 4 x USB2.0, 1 x LVDS, 1 x LCD Inverter,

1 x SATAII, 2 x RS232, 1 x LPC

External I/O Port

1 x VGA, 1 x RJ45, 1 x PS2

Power Requirement

12V DC input

Board Dimension

100mm x 72mm

Temperature

Operating within 0~60 centigrade

Storage within -20~85 centigrade

Download Datasheet @ PDF format

BackToTop

Ordering Guide

LP-170G

Support Intel® Atom N450 processor with onboard VGA, 18-bit LVDS, Audio,

Giga LAN, USB2.0, SATA, CF, PCIE mini card

LP-170H

Support Intel® Atom D410 processor with onboard VGA, 18-bit LVDS, Audio,

Giga LAN, USB2.0, SATA, CF, PCIE mini card

LP-170A

Support Intel® Atom D510 processor with onboard VGA, 18-bit LVDS, Audio,

Giga LAN, USB2.0, SATA, CF, PCIE mini card

LP-170C

Support Intel® Atom D525 processor with onboard VGA, 18-bit LVDS, Audio,

Giga LAN, USB2.0, SATA, CF, PCIE mini card

CMB-170C

Barebone system for LP-170C w/ 12V/80W adapter
