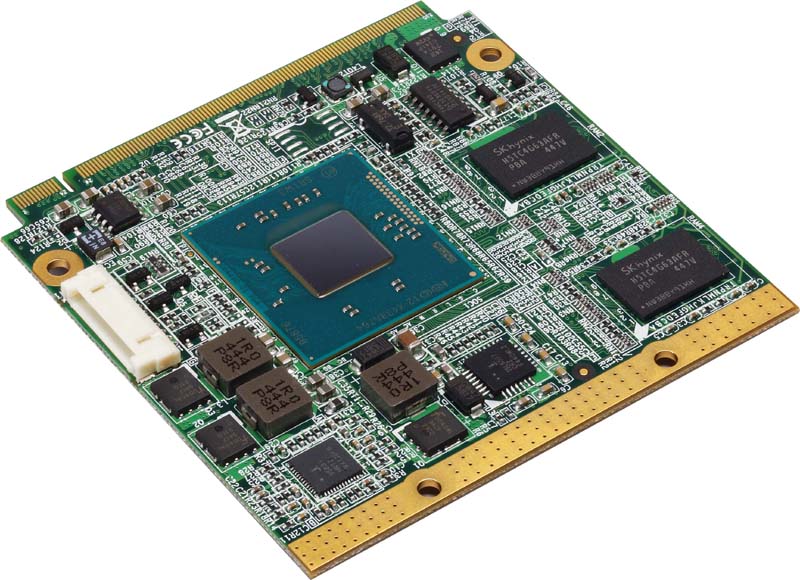

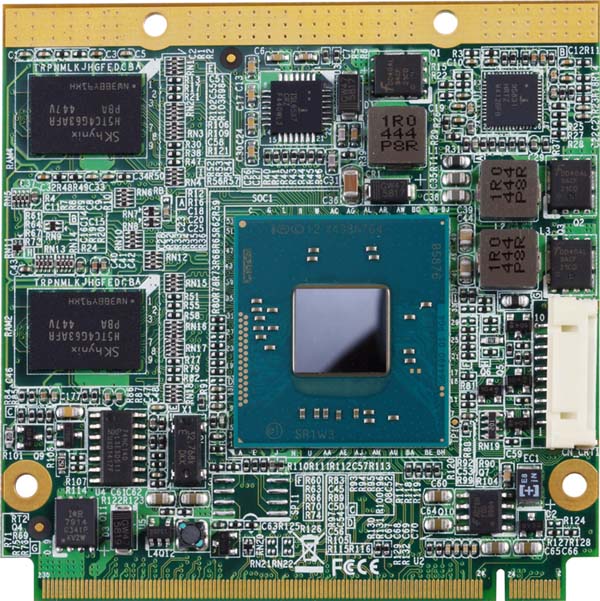

 QE-E70 - QSeven CPU Module







- Features

- Specifications

- Ordering information

- Datasheet (PDF)

- Check it enlarge

- Technical Document

  • Intel® Celeron™ processor J1900 / N2930 and Atom™ processor E3845.

  • Support DDR3L 1600 MHz 2.0 GB or 4GB on board memory.

  • Support two eDP, VGA,, two Serial ATAII , one USB3.0 , four USB 2.0, four PCIe x1, HD Audio interface.

  • CRT interface , support two DDI port interface for DisplayPort, DVI or LVDS 24-bit up to 1920x1080.

 Specifications

Board Size

70 x 70 mm (L x W), 1.2mm



CPU  Type

Intel® Celeron™ processor J1900 / N2930 and Atom™ processor E3845.



Memory Type

Support DDR3L 1600 MHz 2.0 GB or 4GB memory down. (Onboard memory)



VGA Interface

10-pin VGA connector.



DisplayPort Interface

Support two DDI for DP or DVI or HDMI or eDP.



Series ATA

Support 2 x SATAII(3Gb/s).



Audio

Support High Definition Audio Interface.



USB

Support 1 x USB3.0 , 4 x USB 2.0.



Extended Interface

Four PCIe2.0 x1

LPC for super I/O

SMBus

SPI for System BIOS



Power supply

5V , 5VSB



 Ordering information

QE-E70JED-2GB

Intel Celeron Processor J1900 (2M Cache, 2.42GHz), eDP, DP, VGA, HD Audio interface, two Serial ATAII, one USB3.0 , four USB 2.0, four PCIe x1, 2G Memory

QE-E70EED-2GB

Intel Atom Processor E3845 (2M Cache, 1.91GHz), eDP, DP, VGA, HD Audio interface, two Serial ATAII, one USB3.0 , four USB 2.0, four PCIe x1, 2G Memory

QE-E70NED-2GB Intel Celeron Processor N2930 (2M Cache, 2.16GHz), eDP, DP, VGA, HD Audio interface, two Serial ATAII, one USB3.0 , four USB 2.0, four PCIe x1, 2G Memory
QE-E70JE2-2GB Intel Celeron Processor J1900 (2M Cache, 2.42GHz), two eDP, VGA, HD Audio interface, two Serial ATAII, one USB3.0 , four USB 2.0, four PCIe x1, 2G Memory
QE-E70EE2-2GB Intel Atom Processor E3845 (2M Cache, 1.91GHz), two eDP, VGA, HD Audio interface, two Serial ATAII, one USB3.0 , four USB 2.0, four PCIe x1, 2G Memory

QE-E70NE2-2GB

Intel Celeron Processor N2930 (2M Cache, 2.16GHz), two eDP, VGA, HD Audio interface, two Serial ATAII, one USB3.0 , four USB 2.0, four PCIe x1, 2G Memory
