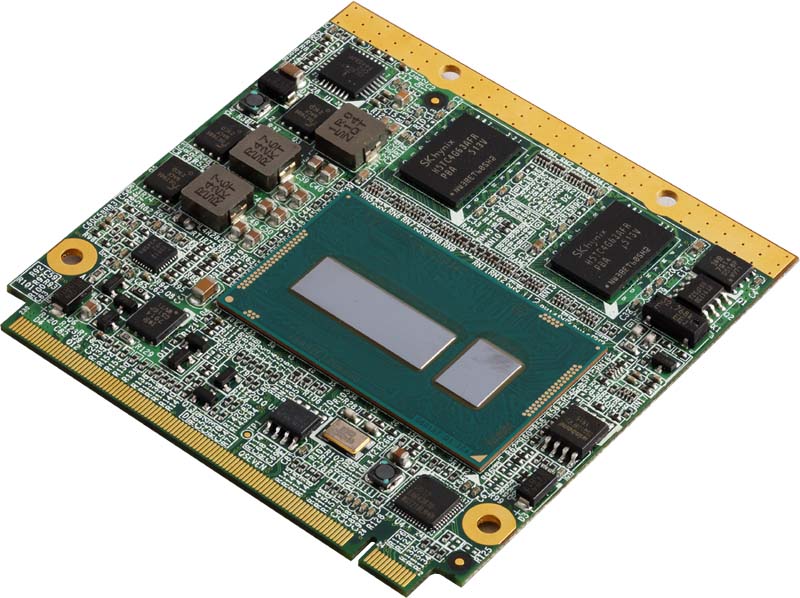

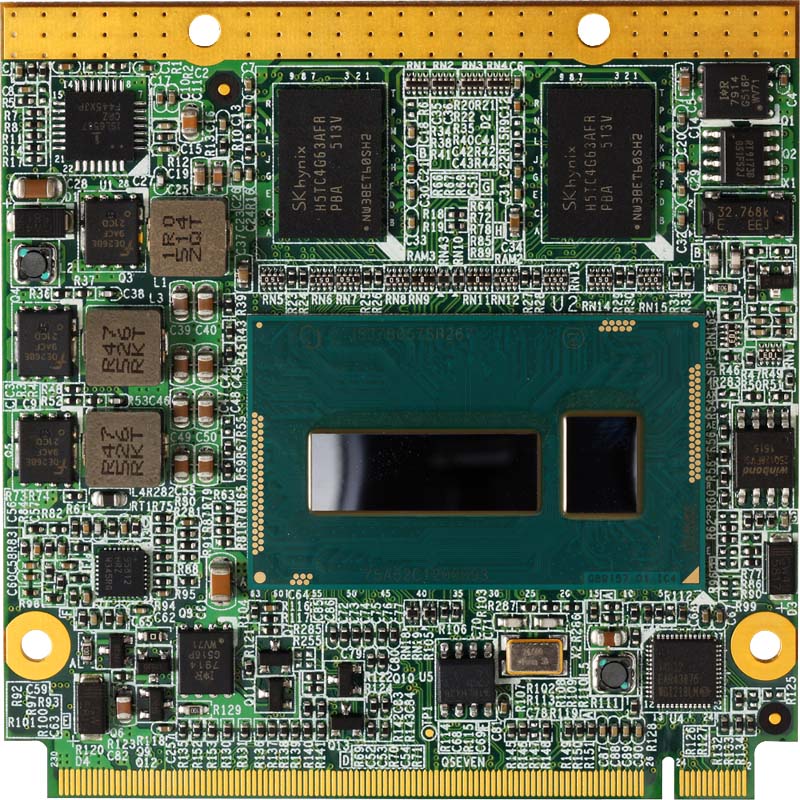

 QE-E71 - QSeven CPU Module







- Features

- Specifications

- Ordering information

- Datasheet (PDF)

- Check it enlarge

- Technical Document

  • Onboard Intel® 5th/4th Gen Core™ U-series Processor.

  • DDR3L 1600 MHz 2GB memory down.

  • Support  two Serial ATA3 , two USB3.0 , two USB 2.0, four PCIe x1, HD Audio interface.

  • 2 x DDI, 1 x eDP for Triple display supports..

  • Onboard Intel® I218-LM Gigabit LAN.

 Specifications

Board Size

70mm x 70mm (L x W), 1.2mm



CPU  Type

Onboard Intel® 5th / 4th Gen Core™ U-series Processor.



Memory Type

Support DDR3L 1600 MHz 2GB memory down. (Onboard memory)



DisplayPort Interface

Support two DDI for DP or HDMI or DVI , one eDP.



Series ATA

Support 2 x SATA3 (6Gb/s).



Audio

Support High Definition Audio Interface



USB

Support 2 x USB3.0 , 2 x USB 2.0.



Extended Interface

Four PCIe2.0 x1

LPC for super I/O

SMBus

SPI for System BIOS



Power supply

DC Input 5V & 5VSB & RTC



 Ordering information

      Standard

Intel® 5th/4th Gen Core™ U-series Processor, Memory size, LAN, DDI, eDP, USB2.0, USB3.0, PCIe, Audio, SATA3, SMBUS, LPC.

      Ordering code

QE-E717-2G: i7-5650U Processor, 2GB Memory

QE-E715-2G: i5-5350U Processor, 2GB Memory

QE-E713-2G: i3-5010U Processor, 2GB Memory
