    PCI Backplane

CBP-5P4

 4 PCI + 1 CPU Backplane

   PISA Backplane

CBP-5P2

 2 PCI + 2 ISA + 1 CPU (PISA) Backplane
ISA Passive Backplane
CBP-4I   4 ISA-Slot Passive Backplane
CBP-8I   8 ISA-Slot Passive Backplane
CBP-14I

  14 ISA-Slot Passive Backplane

CBP-20I
  20 ISA-Slot Passive Backplane

  PICMG 1.3 Active / Passive Backplane

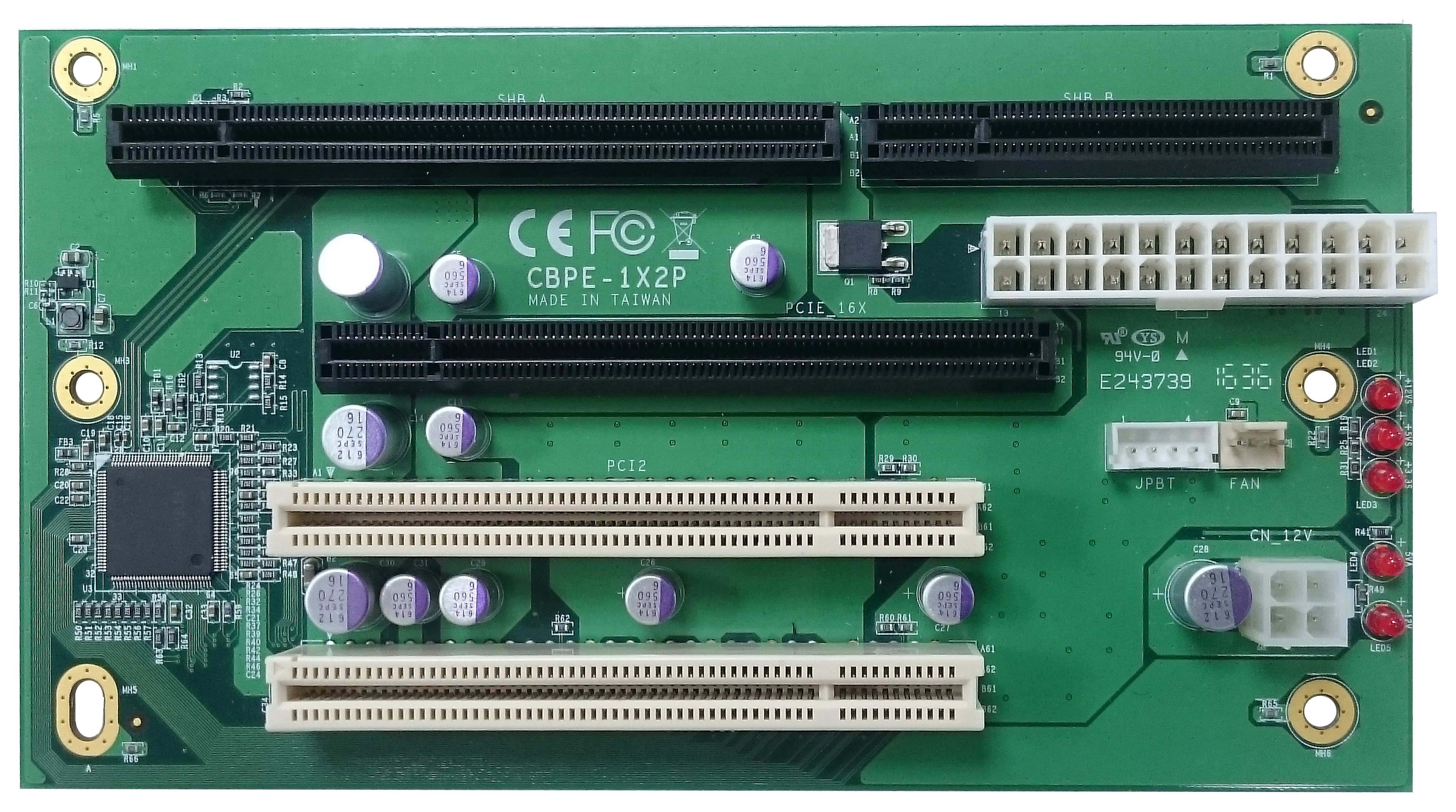

CBPE-1X2P   2 PCI + 1 PCIe x16 Active Half-Size Backplane User's manual

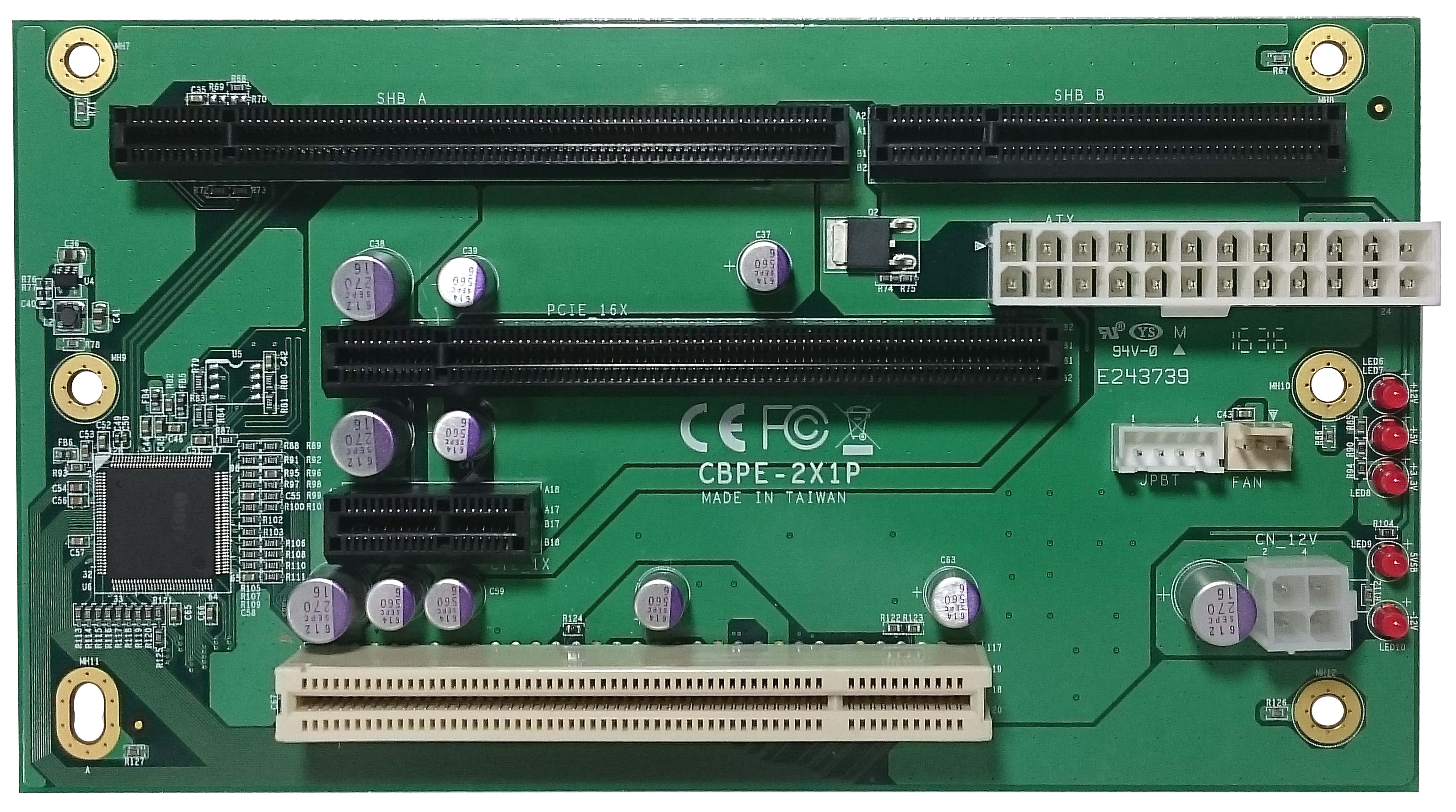

CBPE-2X1P   1 PCI + 1 PCIe x16 + 1 PCIe x1 Active Half-Size Backplane User's manual
CBP-6P3X2   3 PCI + 1 PCIe x16 + 1 PCIe x1 Active Half-Size Backplane User's manual

DBPE-1308A

  8 PCI + 1 PCIe x16 + 3 PCIe x1 Active Full-Size Backplane User's manual
DPE-6S2-R40   3 PCI + 1 PCIe x16 + 1 PCIe x4 Passive Full-Size Backplane User's manual
DPE-10S-R40   4 PCI + 1 PCIe x16 + 4 PCIe x1 Passive Full-Size Backplane User's manual

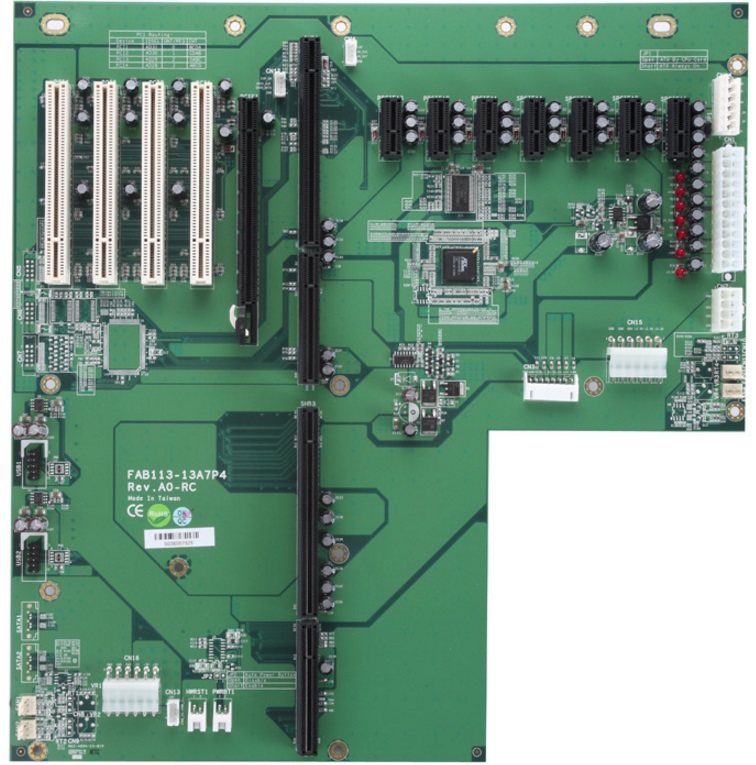

FAB113-13A7P4   4 PCI + 1 PCIe x16 + 7 PCIe x1 Active Full-Size Backplane

PICMG 1.0 Passive Backplane
CBP-6P4   4 PCI + 2 PICMG CPU + 1 ISA Passive Backplane
CBP-8P4   4 PCI + 3 PICMG CPU + 2 ISA Passive Backplane
CBP-10P4   4 PCI + 2 PICMG CPU + 4 ISA Passive Backplane
CBP-14P4   4 PCI + 3 PICMG CPU + 7 ISA Passive Backplane
CBP-19P4   4 PCI + 3 PICMG CPU + 12 ISA Passive Backplane

PICMG 1.0 Active Backplane
CBP-8P7   7 PCI + 1 PICMG CPU + 1 ISA Active Backplane

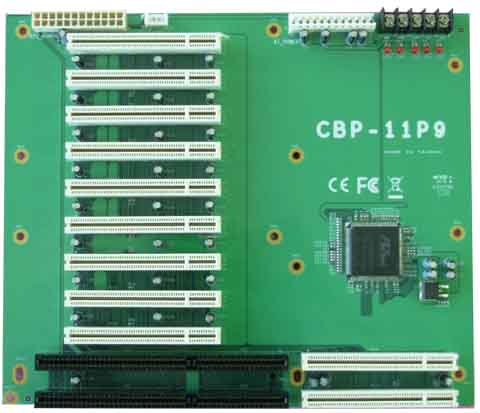

CBP-11P9   9 PCI + 2 PICMG CPU Active Backplane
CBP-14P7   7 PCI + 3 PICMG CPU + 5 ISA Active Backplane
CBP-14P12   12 PCI + 2 PICMG CPU + 1 ISA Active Backplane
CBP-19P17   17 PCI + 2 PICMG CPU Active Backplane

Vertical Type PICMG 1.0 Passive Backplane
CBP-6VP2

  Vertical 2 PCI + 1 CPU + 3 ISA PICMG Passive Backplane, 2U

CBP-6VP3

  Vertical 3 PCI + 1 CPU + 2 ISA PICMG Passive Backplane, 2U

CBP-6VP4

  Vertical 4 PCI + 1 CPU PICMG Passive Backplane, 2U

CBP-3VP1

  Vertical 1 PCI + 1 CPU + 1 ISA PICMG Passive Backplane, 1U

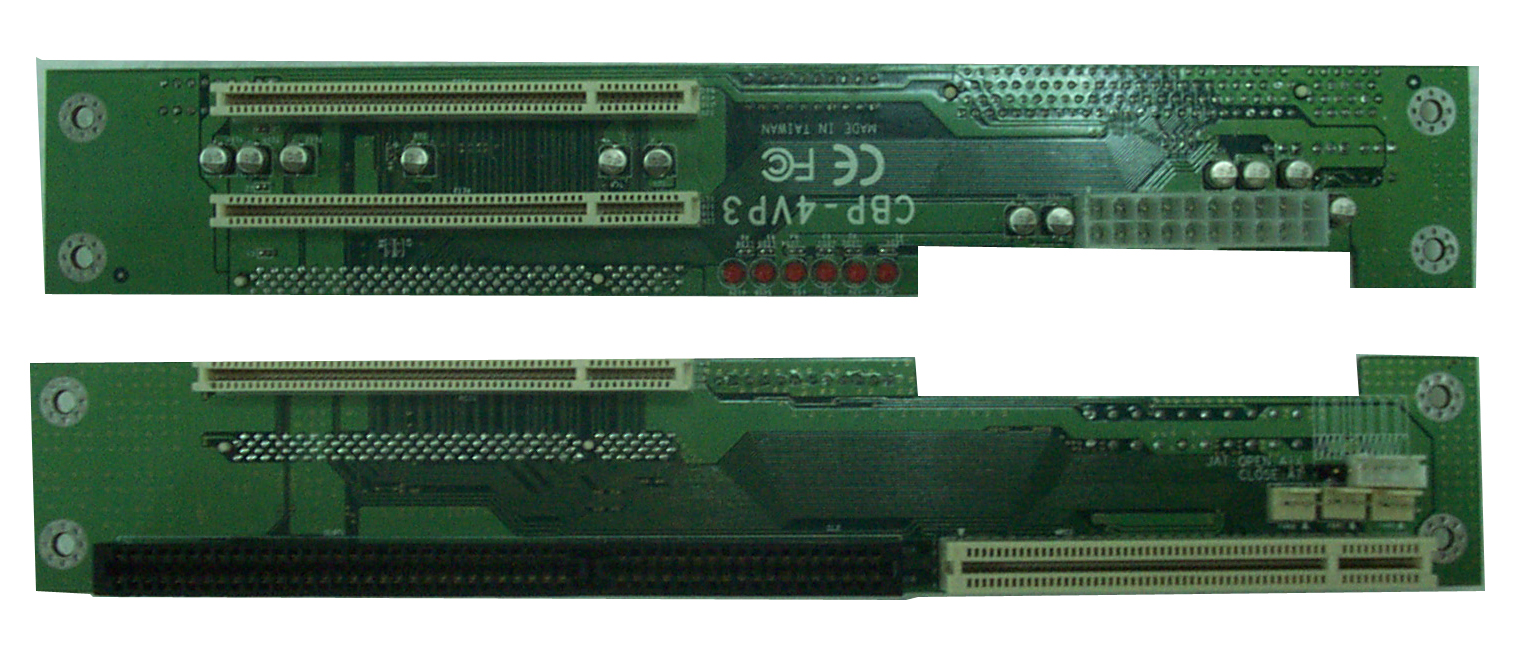

CBP-4VP3

  Vertical 3 PCI + 1 CPU + 1 ISA PICMG Passive Backplane, 1U

  Riser Card

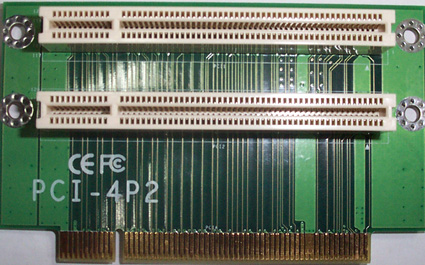

PCI-4P2

 2- slot 32bit right angle PCI Riser card

 (For LV-667 , LV-671, LV-675)

PCI-3P1

 1- slot 32bit right angle PCI Riser Card

 (For LE-364,LE-370/Z)

PCI-3P2

 2- slot 32bit left  angle PCI Riser Card

 (For LE-364,LE-370/Z)

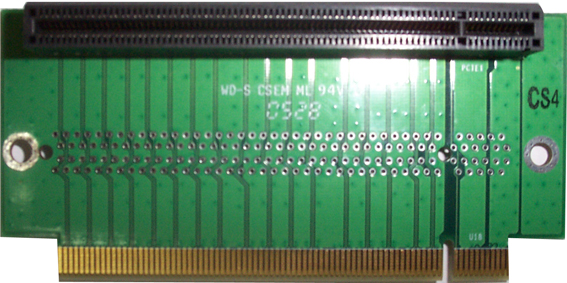

PCIE-2PR

 1- slot  right   angle PCI Express Riser Card

 (For LV-673,LV-677)

PCIE-1PC

 1- slot  left   angle PCI Express Riser Card

 (For LV-672,LV-673,LV-677)

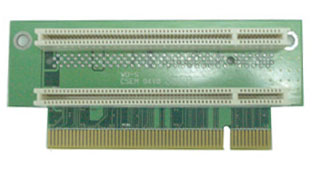

PCI-2P2

 2- slot 32bit left   angle PCI Riser Card

 (For LV-667,LV-670/LVDS.LV-670M,LV-671,LV-675)

PCI-2P1

 1- slot 32bit right angle PCI Riser Card

 (For LV-667, LV-671,LV-675)

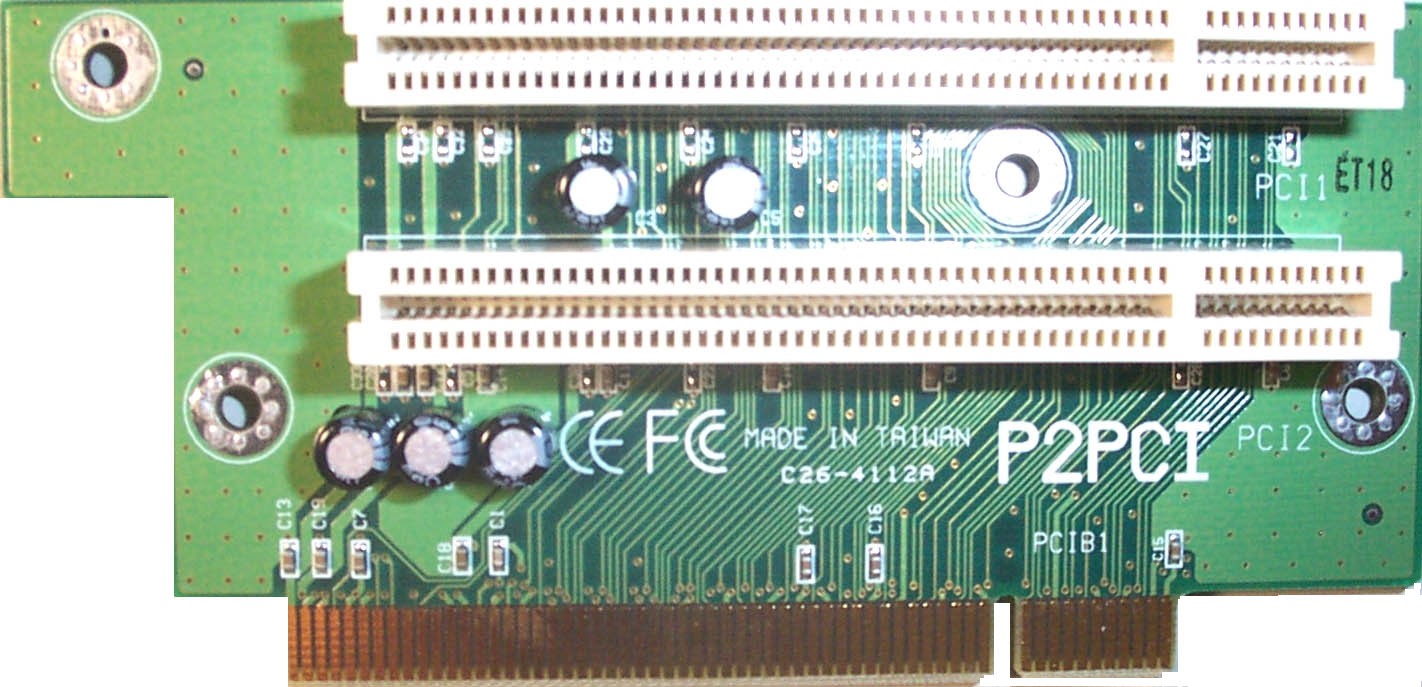

P2PCI

 2- slot 32bit left angle PCI Riser Card
