Product
> Industrial Peripheral >
M.2 (NGFF) card > M2-210
|
|
..........................................................................................................................................
|

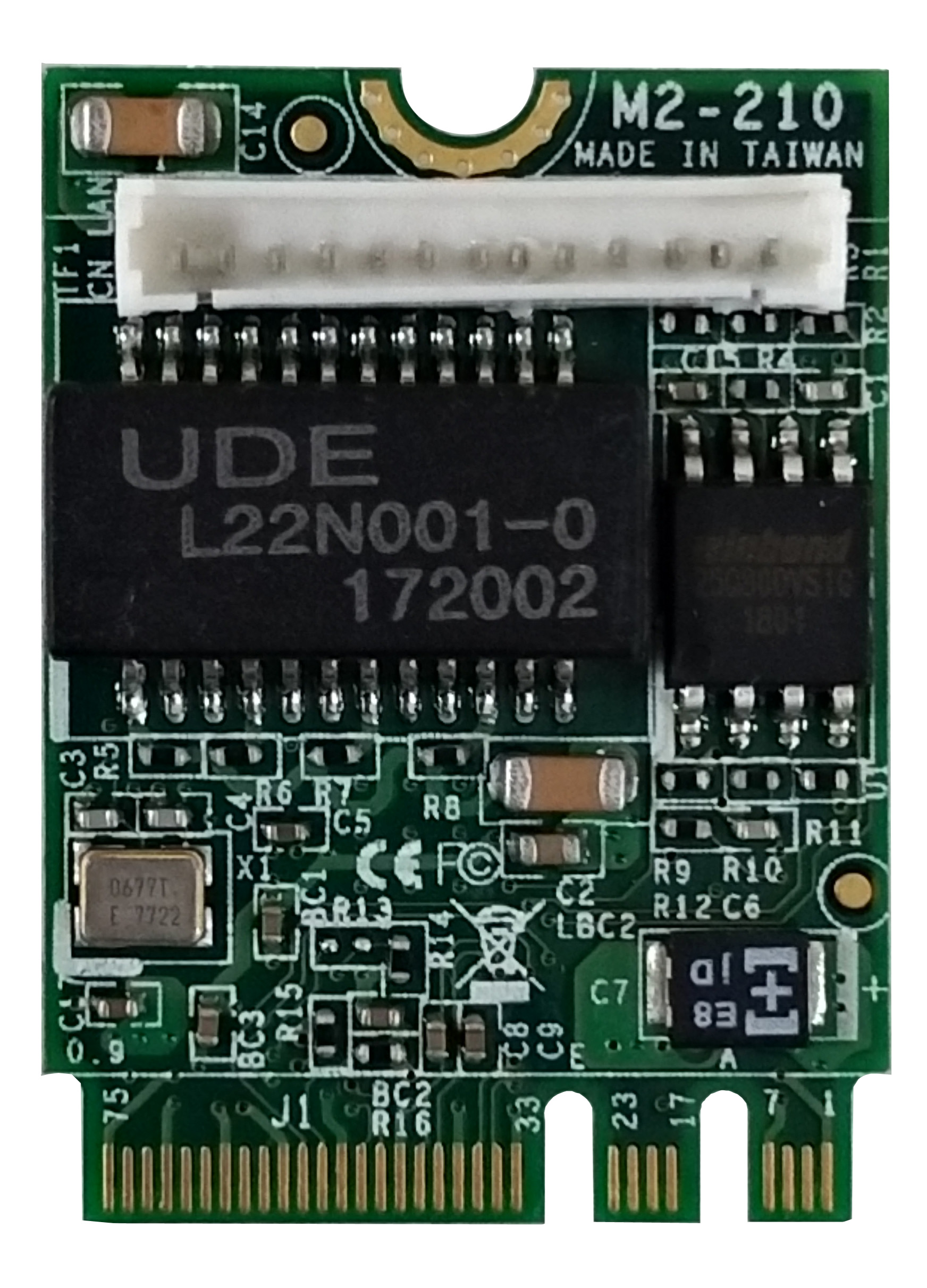

M.2(NGFF) Gigabit Ethernet Card
|
|
 |
-Low power consumption and high performance
|
|
|
Specifications
|
|
Host Interface
|
M.2
|
|
Controller
|
Intel Ethernet Controller I210-AT
|
|
M.2 key type
|
A-E |
|
Dimension
|
22mm
x 30mm x 5.3mm (L x W
x H) |
|
Voltage
|
3.3V +/-5%
|
|
Temperature
|
0~60°C
|
|
Storage Temperature
|
-40~+85°C
|
|
Compliance
|
IEEE 802.3 Ethernet
interface for 1000Base-T, 100Base-TX, and 10Base-T applications (802.3,
802.3u, 802.3ab). |
|
Transfer Rate
|
1000 Mb/s, 100 Mb/s, or 10 Mb/s
|
|
Support OS
|
Win7 x32&x64, Win8
x32&x64, Win8.1 x32&x64, Win10 x32&x64, Win server 2012 R2.Linux (kernel
versions 2.6.30 or newer |
|
User Manual
|
Manual ,
Datasheet |
|
Driver
|
Win7 32-bit ,
Win7 64-bit
Win8 32-bit , Win8
64-bit
Win8.1&10 32-bit , Win8.1&10 64-bit
Win server 2012 R2 64-bit
Linux for kernel 2.6.30 |
|
|
|
|
Ordering
Code
|
|
M2-210
|
M.2 (NGFF) card supports Gigabit Ethernet
(Incl. connection cable and RJ45 adapter)
|
|
|
|
LAN Adapter x1 (BADPGLAND_A) |
|
Adapter LAN Cable
x1 (OALGLAN-A-20) |
|
|
|
|
|
