SP-601H / SP-601Q
MPEG4 Hardware compression Card with 16 ports Video & Audio inputs

 Features
 - PCI interface

- MPEG4 Hardware Compression

- 16 ch Video & Audio inputs

- Support D1 , Half-D1 , CIF

- SCode DVR program (Optional)

- Windows / Linux SDK & Driver

Specifications

Model Name

SP-601H / SP-601HA

SP-601Q / SP-601QA

Form Factor

PCI Interface

Input Type

DB25 x 1 for Video; DB25 x 1 for audio (Optional)

Video Input (s)

16 Cams (BNC)

4 Cams ( BNC)

Total Recording Rate

480 fps (NTSC) , 400 fps (PAL)

120 fps (NTSC) , 100 fps (PAL)

Video Output

1 channel (Support Call monitor function)

Audio Input (s)

16 channels (RCA)

4 channels (RCA)

Audio Output

1 channel

Video Resolution - NTSC/PAL

D1 , Half-D1 , CIF

Compression Format

MPEG4

Support GPIO

4 inputs / 4 outputs

Dimensions

146mm x 95mm

Manual / Driver

User's manual

Windows Driver&SDK

DirectShow

Linux Driver

User Manual / Driver

 Minimum System Requirements / Driver & Software
 OS Support  Windows XP (SCode or SDK), Linux (Driver & SDK)
 CPU  Pentium 4 / 2.66 GHz or above ( w/o Hyper-threading )
 RAM  DDR 512 MB or above
 HDD  250 GB or above
 DirectX  9.0 or above
 VGA  ATI Radeon 9200 or above

Note: SP-601H/Q series aren't compatible with VIA series and ATI series chipset motherboards, and 64-bit

         Windows operating system.

 SP-601H / SP-601HA Accessories


                  16-ch BNC video cable                                              16-ch RCA audio cable kit ( Optional )

 SP-601Q / SP-601QA Accessories

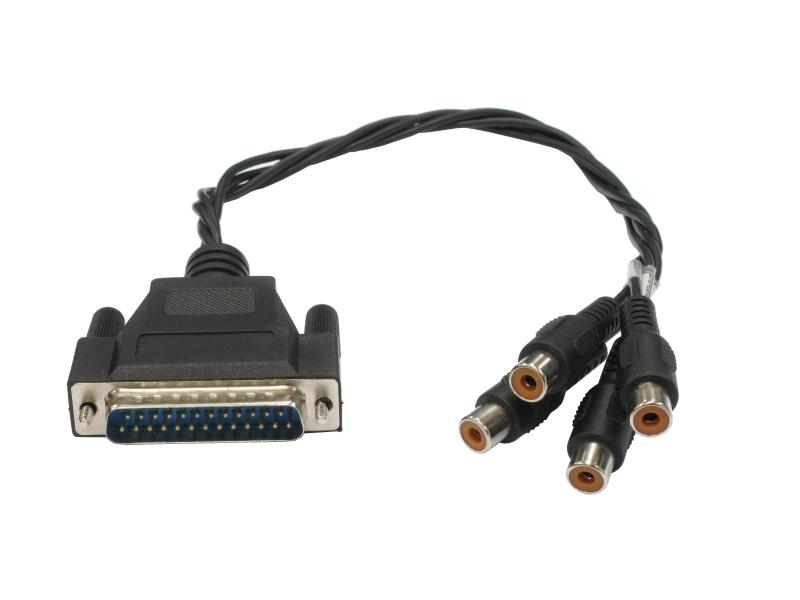

                  4-ch BNC video cable                                              4-ch RCA audio cable kit ( Optional )

Ordering Code

SP-601H

16 channel DVR card with SDK

SP-601HA

16 channel DVR card with SCode DVR software and Free remote software

OALDB25-AUD16 & OAL1P-601H

16 channel RCA audio Cable kit for SP-601H / SP-601HA

SP-601Q

4 channel DVR card with SDK

SP-601QA

4 channel DVR card with SCode DVR software and Free remote software

OALDB25-AUD4 & OAL1P-601H

4 channel RCA audio Cable kit for SP-601Q / SP-601QA

CMS Software

Free remote software

Server software , simple client software , IE viewer

CMS Economic Version

64-channel software , see 4 DVRs simultaneously

CMS Profession Version

Full Economic functions, Group link function, eMAP ....
